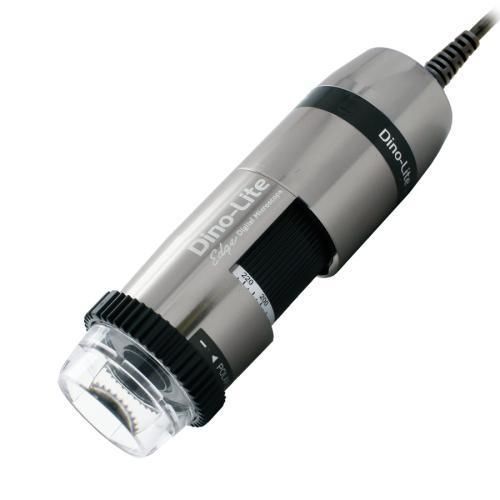

Digital video microscope AM4013MZT

inspectionpolarizedhand-held

Product overview
The Dino-Lite AM4013MZT is a professional handheld digital microscope designed for image capture and measurement with optical magnification from 10x–70x and up to 200x. It integrates a 1.3 Megapixel (1280x1024) CMOS sensor, a glass lens with anti-reflection coating and an adjustable linear polarizer to reduce glare on reflective surfaces. The metal housing increases mechanical protection for industrial use. DinoCapture 2.0 (Windows) and DinoXcope (MacOS) support calibrated measurements.

Key features

• Magnification: 10x ~ 70x, up to 200x (optical)
• Sensor: 1.3 MP CMOS (1280x1024), max 30 fps
• Lighting: 8 white LEDs, LED on/off switchable; IR cut-filter >650 nm
• Lens: Glass lens with anti-reflection coating
• Polarizer: Built-in adjustable linear polarizer
• Interface: USB 2.0; wireless-ready with optional WF-10 WiFi streamer
• Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS) — supports calibrated measurements
• Measurement & calibration: Supported; Microtouch sensor included; ESD safe
• Housing: Metal; dimensions 10.5 cm (L) x 3.2 cm (D); weight 140 g; cable length 1.8 m

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20 | 48.7 | 19.6 | 15.6 | 3.6
30 | 21.7 | 13.0 | 10.4 | 1.9
40 | 9.0 | 9.8 | 7.8 | -
50 | 1.9 | 7.8 | 6.3 | 0.88
60 | -2.3 | 6.5 | 5.2 | -
220 | -0.1 | 1.8 | 1.4 | 0.20
230 | 1.0 | 1.7 | 1.4 | -
240 | 2.1 | 1.6 | 1.3 | -
Unit = mm

Detailed specification

• Lighting / LED type: White; Number of LEDs: 8; LED on/off switchable: Yes; IR cut-filter >650 nm
• Polarizer: Yes, linear (adjustable)
• Magnification: 10x ~ 70x, 200x
• Lens type: Glass with anti-reflection coating
• Sensor type: CMOS; Resolution: 1.3 MP (1280x1024); Max frame rate: 30 fps
• Interface: USB 2.0; Imaging standards: DirectShow, UVC; Wireless-ready (WF-10 optional)
• Operating systems: Windows 7/8/10/11; MacOS 10.9+
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF; (MacOS) image: JPEG, PNG; video: MOV
• Housing material: Metal; Dimensions: 10.5 cm x 3.2 cm; Weight: 140 g; Cable length: 1.8 m
• Measurement: Yes; Calibration: Yes; Microtouch sensor: Yes; ESD safe: Yes

Package contents & warranty

• Includes: Microscope, carry pouch, software CD, calibration target, ZT-Z-CC1 cap closure, user manual
• Warranty: 2 years (European warranty)
• Regulatory approvals: CE, FCC, ROHS
• Price range (indicative): €500.00 - €700.00
