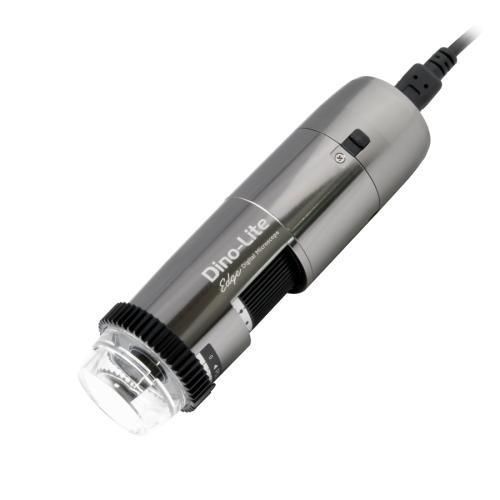

Digital video microscope AF7115MZT

for teachinginspectionlaboratory

Overview
The AF7115MZT by Dino-Lite is a 5.0 megapixel digital microscope delivering high-resolution imaging across a wide magnification range (20x–220x). It features Flexible LED Control (FLC) for precise illumination adjustment and an integrated linear polarizer to reduce reflections. The unit is USB 2.0 with wireless-ready capability via the optional WF-20 streamer.

Applications
Suitable for inspection, quality control, R&D and documentation where working with shiny or reflective materials is required. Typical fields: electronics, metal and plastic inspection, glass and jewelry assessment, failure analysis and teaching.

Main features

• 5.0 MP CMOS sensor (2592 x 1944)
• Magnification: 20x ~ 220x (wide zoom range)
• Integrated linear polarizer for reflection control
• Flexible LED Control (FLC) with 8 white LEDs; LED on/off switchable
• Aluminum/metal housing — compact form (11.5 cm x 3.4 cm), 97 g
• USB 2.0 interface; wireless-ready with WF-20 (optional)
• Extensive measurement and calibration functions; Microtouch sensor; ESD safe
• Exchangeable front caps (N3C series) for varied lighting and working conditions

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
10 | 142.6 | 39.6 | 29.7 | 26.0
20 | 60.1 | 19.8 | 14.8 | 7.0
30 | 33.6 | 13.2 | 9.9 | 3.3
40 | 21.0 | 9.9 | 7.4 | 2.0
50 | 14.0 | 7.9 | 5.9 | 1.4
60 | 9.8 | 6.6 | 4.9 | 1.0
70 | 7.3 | 5.7 | 4.2 | 0.8
80 | 5.7 | 4.9 | 3.7 | 0.6
90 | 4.8 | 4.4 | 3.3 | 0.5
100 | 4.3 | 4.0 | 3.0 | 0.4
110 | 4.2 | 3.6 | 2.7 | 0.4
120 | 4.3 | 3.3 | 2.5 | 0.3
130 | 4.7 | 3.0 | 2.3 | 0.3
140 | 5.2 | 2.8 | 2.1 | 0.3
150 | 5.8 | 2.6 | 2.0 | 0.3
160 | 6.5 | 2.5 | 1.9 | 0.2
170 | 7.3 | 2.3 | 1.8 | 0.2
180 | 8.1 | 2.2 | 1.6 | 0.2
190 | 9.1 | 2.1 | 1.6 | 0.2
200 | 10.0 | 2.0 | 1.5 | 0.2
210 | 11.0 | 1.9 | 1.4 | 0.2
220 | 12.1 | 1.8 | 1.3 | 0.2

Specifications
Lighting

• Light / LED type: White
• Number of LEDs: 8
• LED on/off switchable: Yes
• Infrared filter: IR cut-filter >650 nm
• Diffuser available: Yes (N3C-D included)
• Emission filter: No
• Polarizer: Yes, linear

Optics

• Magnification: 20x ~ 220x
• Macro zoom: No
• Working distance: Standard
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 5.0 Megapixel (2592x1944)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0
• Operating systems: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV (max 1.3MP)
• Imaging standards: DirectShow, UVC
• WiFi: Wireless-ready, requires the WF-20 (optional)

Housing

• Housing material: Metal / aluminum
• Dimensions: 11.5 cm (L) x 3.4 cm (D)
• Weight: 97 g
• Cable length: 1.8 m

Features

• Special feature: Flexible LED Control (FLC)
• Measurement: Yes
• Calibration: Yes
• Microtouch sensor: Yes
• ESD safe: Yes

Package contents

• Microscope
• Carry pouch
• Software CD
• Calibration target
• User manual
• N3C-O (Open cap), N3C-C (Closed cap), N3C-D (Diffuser cap), N3C-extension cap, N3C-L (Long cap), N3C-S (Side light cap)

Warranty & regulatory
2 years European warranty; Regulatory approvals: CE, FCC, ROHS. Price range indicated: EUR 900.00 - EUR 1100.00.
