Digital video microscope AM7515MT4A

inspectionlaboratoryfor materials research

Overview

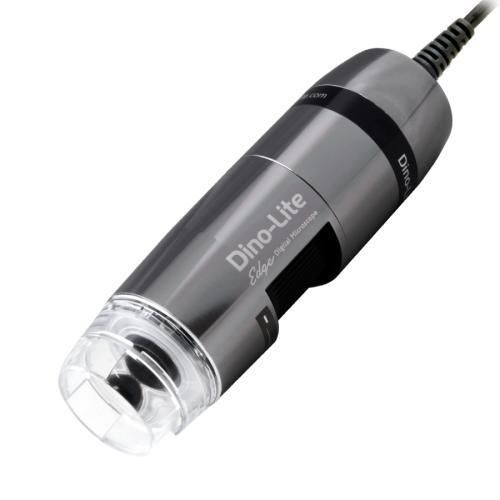

The Dino-Lite AM7515MT4A is a 5MP digital microscope offering 415x–470x magnification with integrated coaxial illumination. Flexible LED Control (FLC) allows switching or mixing between brightfield and coaxial lighting. Automatic Magnification Reading (AMR) displays magnification in the bundled DinoCapture software. For high-magnification work a high-precision stand (e.g., RK-10A) is recommended for stable focusing.

Key features

• Sensor: CMOS 5.0 MP (2592 x 1944)
• Magnification: 415x–470x with magnification lock
• Illumination: 8 white LEDs with FLC; coaxial illumination integrated
• IR cut-filter >650 nm; Microtouch sensor; ESD-safe metal housing
• Interface: USB 2.0; compatible with Windows 7/8/10/11 and MacOS 10.12+
• Software: DinoCapture 2.0 (Windows) and DinoXcope (Mac)

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
415 | 6.0 | 0.951 mm | 0.697 mm | 0.03 mm
420 | 7.3 | 0.926 mm | 0.680 mm |
430 | 8.0 | 0.905 mm | 0.664 mm |
440 | 8.8 | 0.884 mm | 0.648 mm |
450 | 10.0 | 0.876 mm | 0.636 mm |
460 | 11.3 | 0.847 mm | 0.621 mm |
470 | 11.8 | 0.828 mm | 0.608 mm | 0.045 mm
Unit = mm
*Without front cap

Software & applications
Bundled with DinoCapture 2.0 for Windows (AMR, FLC control, calibration, measurement, image capture/annotation, video). Suitable for microelectronics inspection (wafers, microchips), materials analysis, quality control and laboratory R&D where high magnification and coaxial lighting are required.

Package contents & certification

• Microscope, carry pouch, software CD, user manual, quick guide, calibration target, front cover box
• Dimensions: 10.7 cm (L) x 3.2 cm (D); Weight: 139 g; Cable: 1.8 m
• Warranty: 2 years (EU); Certifications: CE, FCC, ROHS; Price range indicative: €1000–€1200

Technical specifications

• Lighting: White LEDs (8), LED on/off switchable, IR cut-filter >650 nm
• Optics: Glass lens with anti-reflection coating; working distance: standard (see table)
• Video: Max 30 fps (video recording max 20 fps)
• Formats & standards: Windows image/video formats supported; Mac image/video formats supported; DirectShow, UVC
• Optional: Wireless-ready with WF-10 WiFi streamer (optional)
