Digital video microscope AM4917MZTL

inspectionpolarizedpolarizing

Overview

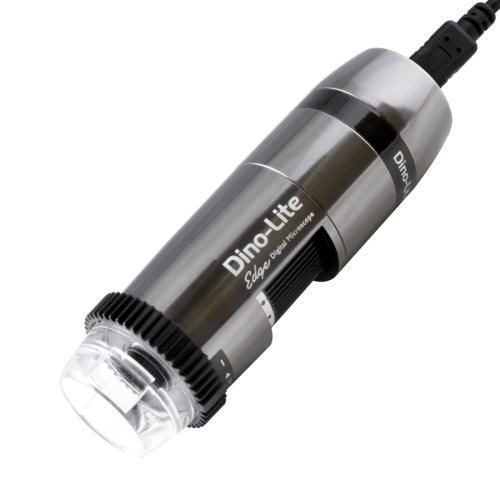

The Dino-Lite AM4917MZTL is part of the EDGE PLUS series in the Long Working Distance (LWD) range. It delivers 10–140x magnification, a 1.3MP CMOS sensor and a USB 2.0 interface at 30 fps in a compact metal housing. The long working distance and adjustable linear polarizer make it suitable for inspection of reflective or uneven surfaces in industrial applications. The model can acquire depth information by analysing focus shifts to derive topographical depth data (see product manual for procedure).

Main features

• 1.3 Megapixel EDGE PLUS sensor
• Depth acquisition (topographical depth data)
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC)
• 10–140x magnification
• Long working distance (LWD)
• Adjustable linear polarizer

Imaging functions
EDOF captures multiple images at different focus depths and combines them into a single sharp image to increase usable depth of field. EDR captures multiple exposures and merges them to extend dynamic range. AMR automatically detects and stores magnification with captured images to simplify measurements. The built-in adjustable polarizer reduces glare on shiny samples such as metals, plastics, glass, jewelry and PCBs. Note: EDOF, EDR and Depth acquisition are currently supported on Windows only.

Optical data
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 237.6 | 39.1 | 29 | 24.61
20 | 115.0 | 19.5 | 14.7 | 6.68
30 | 75.4 | 13.0 | 9.8 | 3.21
40 | 56.7 | 9.8 | 7.3 | 1.94
50 | 46.4 | 7.8 | 5.9 | 1.33
60 | 40.1 | 6.5 | 4.9 | 0.98
70 | 36.3 | 5.6 | 4.2 | 0.76
80 | 34.0 | 4.9 | 3.7 | 0.62
90 | 32.6 | 4.3 | 3.3 | 0.51
100 | 31.9 | 3.9 | 2.9 | 0.44
110 | 31.7 | 3.6 | 2.7 | 0.38
120 | 31.9 | 3.3 | 2.4 | 0.33
130 | 32.4 | 3.0 | 2.3 | 0.30
140 | 33.2 | 2.8 | 2.1 | 0.27
Listed values may differ slightly · *Without front cap · Unit = mm

Technical specifications

• Brand: Dino-Lite
• Model / product code: AM4917MZTL EDGE PLUS
• Sensor type: CMOS · Resolution: 1.3 MP (1280 x 1024)
• Maximum frame rate: 30 fps · Interface: USB 2.0
• Operating systems: Windows 7/8/10/11, MacOS 11.1 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Light / LEDs: White, 8 LEDs, FLC (on/off)
• Infrared filter: IR cut-filter >650 nm · Diffuser: N3C-D included
• Polarizer: Adjustable linear polarizer
• Magnification: 10x–140x · Macro zoom: No · Working distance: Long (LWD)
• Lens: Glass with anti-reflection coating · Housing: Metal
• Magnification lock: Yes · Measurement & calibration: Yes
• Dimensions: 10.5 cm (L) x 3.3 cm (D) · Weight: 130 g · Cable: 1.5 m
• Special features: FLC, AMR, EDOF, EDR, Depth acquisition
• ESD safe: Yes
• Package contents: Microscope, carry pouch, software CD, user manual, quick guide, calibration target, front caps and accessories
• Warranty: 2 years (European warranty)
• Regulatory approvals: CE, FCC, ROHS
• Indicative price range: €1100.00 - €1300.00
