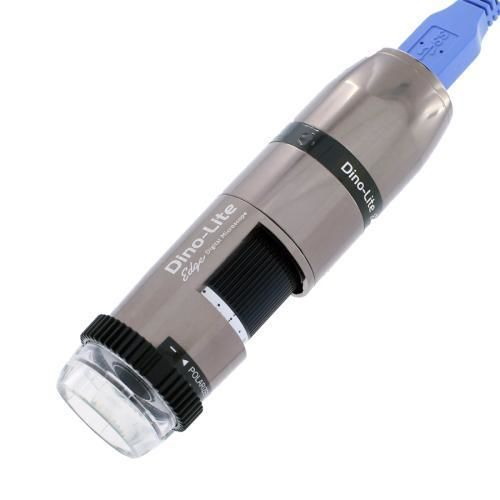

Digital video microscope AM73915MZT

inspectionhand-heldportable

Product overview
The Dino-Lite AM73915MZT is a USB 3.0 digital microscope delivering uncompressed 5.0 megapixel images in a compact metal housing. It supports USB 3.0 SuperSpeed (up to 5 Gbit/s) enabling image transfer up to 45 FPS at 1280 x 960. Magnification ranges from 10x to 220x with a standard working distance up to 6 cm.

Key features

• Brand: Dino-Lite — Model: AM73915MZT
• Sensor: 5.0 MP CMOS (2560 x 1920)
• Magnification: 10x ~ 220x; working distance: standard (up to approx. 6 cm)
• Interface: USB 3.0 (cable included); max frame rate: up to 45 fps (video recording max 20 fps)
• Lighting: White LEDs, 8 LEDs, LED on/off switchable; diffuser N3C-D included
• Polarizer: built-in linear polarizer; lens: glass with anti-reflection coating
• Housing: full metal; dimensions: 11.9 cm (L) x 3.3 cm (H); weight: 110 g; cable length: 1.8 m

Advanced imaging functions (EDOF / EDR / AMR)
EDOF captures multiple images at different focus depths and combines them into a single image with increased depth of field. EDR captures multiple exposures and merges them to extend dynamic range. AMR automatically detects and stores magnification within the Dino-Lite software to simplify measurements. (EDOF and EDR operate under Windows only.)

Optical Data Table
MAGNIFICATION | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 142.4 | 37.8 | 28.3 | 19.7
20 | 59.5 | 19.5 | 14.6 | 5.4
30 | 32.9 | 13.0 | 9.7 | 2.6
40 | 20.2 | 9.8 | 7.3 | 1.6
50 | 13.2 | 7.8 | 5.8 | 1.1
60 | 9.0 | 6.5 | 4.8 | 0.8
70 | 6.4 | 5.6 | 4.2 | 0.6
80 | 4.8 | 4.9 | 3.6 | 0.5
90 | 3.9 | 4.3 | 3.2 | 0.42
100 | 3.5 | 3.9 | 2.9 | 0.36
110 | 3.3 | 3.6 | 2.7 | 0.31
120 | 3.5 | 3.3 | 2.4 | 0.27
130 | 3.8 | 3.0 | 2.2 | 0.24
140 | 4.3 | 2.8 | 2.1 | 0.22
150 | 4.9 | 2.6 | 1.9 | 0.20
160 | 5.6 | 2.4 | 1.8 | 0.18
170 | 6.4 | 2.3 | 1.7 | 0.17
180 | 7.3 | 2.2 | 1.6 | 0.15
190 | 8.2 | 2.1 | 1.5 | 0.14
200 | 9.2 | 2.0 | 1.5 | 0.13
210 | 10.2 | 1.9 | 1.4 | 0.13
220 | 11.3 | 1.8 | 1.3 | 0.12
Unit = mm

Additional notes
Maximum frame rate up to 45 fps (video recording max 20 fps). Includes magnification lock, anti-reflection coated glass lens, built-in linear polarizer and flexible LED control.

Technical specifications

• Brand: Dino-Lite
• Model: AM73915MZT
• Magnification: 10x ~ 220x
• Sensor: CMOS, 5.0 Megapixel (2560 x 1920)
• Maximum frame rate: 45 fps (max 20 fps video recording)
• Interface: USB 3.0 (cable included)
• Operating systems: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV (max 1.3MP)
• Imaging standards: DirectShow, UVC
• WiFi: No
• Lighting / LED type: White
• Number of LEDs: 8
• LED on/off switchable: Yes
• Infrared filter: IR cut-filter >650 nm
• Diffuser available: Yes (N3C-D included)
• Emission filter: No
• Polarizer: Yes, linear
• Lens type: Glass with anti-reflection coating
• Macro zoom: No
• Working distance: Standard (up to approx. 6 cm)
• Housing material: Metal housing
• Magnification lock: Yes
• Dimensions: 11.9 cm (L) x 3.3 cm (H)
• Weight: 110 g
• Cable length: 1.8 m
• Special features: Automatic Magnification Reading (AMR), Extended Dynamic Range (EDR), Extended Depth of Field (EDOF), Flexible LED Control (FLC)
• Measurement: Yes
• Calibration: Yes
• Microtouch sensor: Yes
• ESD safe: Yes
• Package contents: Microscope, carry pouch, software CD, user manual, quick guide, calibration target, front cover N3C-O (Open cap), N3C-C (Closed cap), N3C-D (Diffuser cap), N3C-E (Extension cap), N3C-L (Long cap), N3C-S (Side light cap)
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS
• Price range (indicative): €1300.00 - €1500.00
