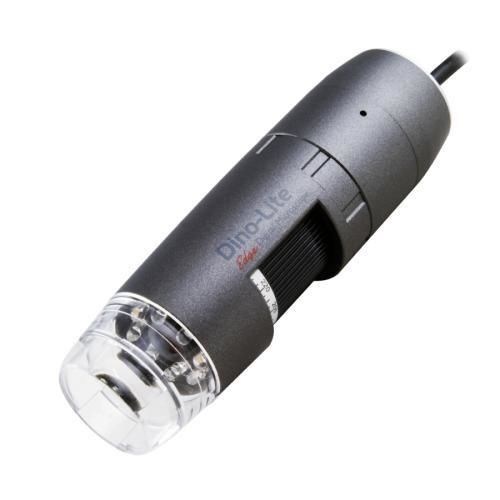

Digital video microscope AM4115T

inspectionhand-heldportable

Product overview
The AM4115T is a Dino-Lite Edge digital microscope designed for professional inspection and measurement tasks. The adaptable exchangeable caps provide flexibility for close-up and standard working distance applications.

Product code
AM4115T - EDGE

Main features

• Magnification: 20x – 220x
• Sensor: 1.3 MP CMOS (1280 x 1024), up to 30 fps
• Lighting: 8 white LEDs, switchable; diffuser (N3C-D) included; IR cut-filter >650 nm
• Interface: USB 2.0 (UVC, DirectShow)
• Measurement and calibration functions; microtouch sensor; magnification lock
• Multiple exchangeable caps included (N3C-O, N3C-C, N3C-D, N3C-E, N3C-L, N3C-S)
• Wireless-ready (requires optional WF-10 WiFi streamer)
• Dimensions: 10.5 cm (L) x 3.2 cm (D); Weight: 105 g; Cable: 1.8 m
• Warranty: 2 years (Europe); Approvals: CE, FCC, ROHS

Optical data (unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE 1 | WORKING DISTANCE 2* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20 | 52.7 | 60.2 | 19.5 | 15.6 | 2.5
30 | 26.0 | 33.5 | 13.0 | 10.4 | 1.8
40 | 13.4 | 20.9 | 9.8 | 7.8 | 1.5
50 | 6.4 | 13.9 | 7.8 | 6.3 | -
60 | 2.2 | 9.7 | 6.5 | 5.2 | -
70 | - | 7.1 | 5.6 | 4.5 | 1.0
80 | - | 5.5 | 4.9 | 3.9 | -
90 | - | 4.5 | 4.3 | 3.5 | -
100 | - | 4.1 | 3.9 | 3.1 | -
110 | - | 4.0 | 3.6 | 2.8 | -
120 | - | 4.1 | 3.3 | 2.6 | -
130 | - | 4.5 | 3.0 | 2.4 | -
140 | - | 5.0 | 2.8 | 2.2 | -
150 | - | 5.6 | 2.6 | 2.1 | -
160 | - | 6.3 | 2.4 | 2.0 | -
170 | - | 7.1 | 2.3 | 1.8 | -
180 | - | 8.0 | 2.2 | 1.7 | -
190 | - | 8.9 | 2.1 | 1.6 | -
200 | - | 9.9 | 2.0 | 1.6 | -
210 | - | 10.9 | 1.9 | 1.5 | -
220 | - | 11.9 | 1.8 | 1.4 | 0.1
* Without front cap

Technical specifications

• Lighting: White LED, 8 LEDs, LED on/off switchable; Diffuser included (N3C-D); IR cut-filter >650 nm
• Optics: Glass lens with anti-reflection coating; Working distance: standard; Macro zoom: No
• Sensor: CMOS 1.3 MP (1280x1024); Max frame rate: 30 fps
• Interface & compatibility: USB 2.0; Windows 7/8/10/11, MacOS 10.9+; Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported formats: Images (BMP, GIF, PNG, JPG, TIF, ...), Video (WMV, FLV, SWF / MOV on Mac)
• Housing: Composite/plastic; Magnification lock: Yes; Dimensions & weight as above; Cable: 1.8 m
• Features: Measurement & calibration, microtouch sensor; ESD safe: No
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O, N3C-C, N3C-D, N3C-E, N3C-L, N3C-S
• Regulatory: CE, FCC, ROHS; Price indication: €500.00 - €700.00
