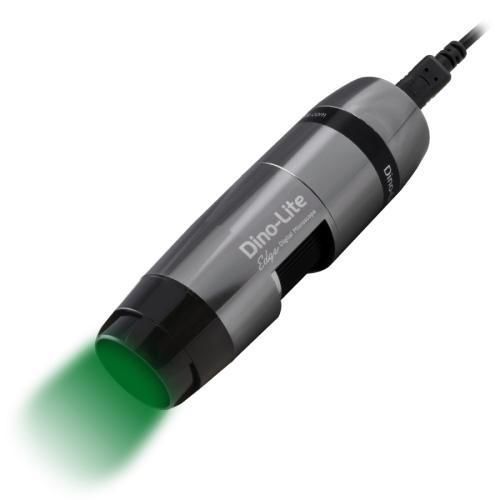

Digital video microscope AM4517MT-YFGW

for biologylaboratoryfor life sciences applications

Product description
Detect green-yellow to red fluorescence emissions with the AM4517MT-YFGW high-sensitivity digital microscope (20x–220x). It delivers 520 nm excitation and uses a 570–650 nm emission filter, compatible with fluorophores such as EYFP, mCherry and Alexa Fluor 594. The unit integrates Automatic Magnification Readout (AMR) for straightforward measurements, a metal housing and a 1.3 megapixel CMOS sensor.

Main features

• 1.3 Megapixel (1280x960) CMOS sensor, 30 fps
• High-sensitivity imaging for green-yellow to red fluorescence
• 520 nm excitation LEDs with switchable white LED
• Emission filter: 570 nm ~ 650 nm
• Magnification range: 20x ~ 220x with AMR
• Measurement and calibration functions; microtouch sensor
• USB 2.0 interface; compatible with DinoCapture 2.0 (Windows) and DinoXcope (Mac)

Optical Data Table
Magnification Rate | Working Distance (mm) | Field of View (x) (mm) | Field of View (y) (mm) | Depth of Field (mm)
20x | 59.8 | 19.53 | 14.65 | 7.05
30x | 33.1 | 13.02 | 9.77 | 3.36
40x | 20.5 | 9.77 | 7.32 | 2.02
50x | 13.4 | 7.81 | 5.86 | 1.38
60x | 9.2 | 6.51 | 4.88 | 1.01
70x | 6.7 | 5.58 | 4.19 | 0.79
80x | 5.1 | 4.88 | 3.66 | 0.64
90x | 4.1 | 4.34 | 3.26 | 0.53
100x | 3.7 | 3.91 | 2.93 | 0.45
110x | 3.6 | 3.55 | 2.66 | 0.39
120x | 3.7 | 3.26 | 2.44 | 0.34
130x | 4.1 | 3.01 | 2.25 | 0.30
140x | 4.5 | 2.79 | 2.09 | 0.27
150x | 5.2 | 2.60 | 1.95 | 0.25
160x | 5.9 | 2.44 | 1.83 | 0.22
170x | 6.7 | 2.30 | 1.72 | 0.21
180x | 7.5 | 2.17 | 1.63 | 0.19
190x | 8.5 | 2.06 | 1.54 | 0.18
200x | 9.4 | 1.95 | 1.46 | 0.16
210x | 10.5 | 1.86 | 1.40 | 0.15
220x | 11.5 | 1.78 | 1.33 | 0.14

Technical specifications
Lighting — 520 nm excitation LEDs + switchable white LED (7 FL + 1 White)
Emission filter — 570 nm ~ 650 nm
Fluorophores — EYFP, mCherry, Alexa Fluor 594
Optics — Magnification: 20x ~ 220x; Working distance: see Optical Data Table
Lens — Glass with anti-reflection coating
Sensor — CMOS 1.3 Megapixel (1280x960), 30 fps
Interface / Software — USB 2.0; Windows 7/8/10/11 (DinoCapture 2.0), MacOS 10.9+ (DinoXcope)
Housing — Metal; Dimensions: 104 mm (H) x 32 mm (D); Weight: 90 g; Cable: 1.8 m

Package contents and compliance

• Model: AM4517MT-YFGW
• Included: microscope, carry pouch, calibration target, user manual, N3C caps (C, EB, LB, OB)
• Functions: AMR, measurement and calibration, microtouch sensor
• Warranty: 2 years (European)
• Regulatory: CE, FCC, RoHS
• Price range (informative): €1200.00 - €1400.00
