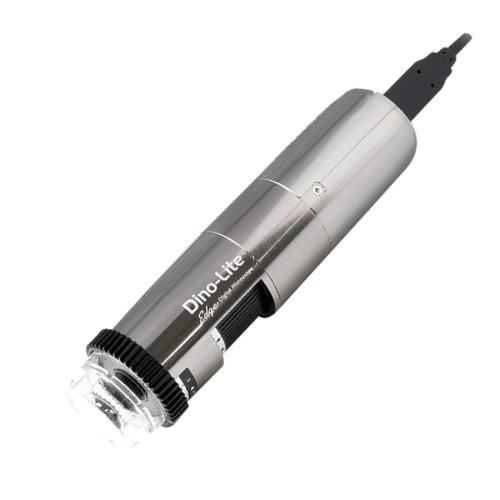

Digital video microscope AG5915MZT

inspectionLEDwhite light

Product overview
Using its global shutter sensor, the AG5915MZT delivers distortion-free live imaging of moving subjects. Its external trigger enables synchronized capture in automated inspection systems such as sensor-triggered inspection stations and robotic systems. Both software and external triggering options support synchronized flashing for well-timed frame acquisition. Featuring a 2-megapixel sensor, 10x ~ 220x magnification, and professional tools such as AMR and EDR, the AG5915MZT is suited for trigger-based imaging in dynamic inspection environments.

Main features

• Global Shutter
• High Quality Optics
• 2.0 Megapixel (1920 x 1080)
• Software Trigger
• Enhanced Flexible LED Control (eFLC)
• Adjustable Polarizer
• Extended Dynamic Range (EDR)
• Extended Depth of Field (EDOF)
• Depth Acquisition (DPQ)
• Auto and Manual Refocus
• Automatic Magnification Readout (AMR)
• Robust Metal Housing

Optical Data Table (units: mm)
Magnification Rate | Working Distance * | Field of View (x) | Field of View (y) | Depth of Field
10x | 138.5 | 60.70 | 34.14 | 24.54
20x | 58.3 | 30.35 | 17.07 | 6.63
30x | 32.5 | 20.23 | 11.38 | 3.17
40x | 20.4 | 15.17 | 8.54 | 1.91
50x | 13.7 | 12.14 | 6.83 | 1.30
60x | 9.7 | 10.12 | 5.69 | 0.96
70x | 7.3 | 8.67 | 4.88 | 0.75
80x | 5.8 | 7.59 | 4.27 | 0.60
90x | 5.0 | 6.74 | 3.79 | 0.50
100x | 4.7 | 6.07 | 3.41 | 0.43
110x | 4.7 | 5.52 | 3.10 | 0.37
120x | 4.9 | 5.06 | 2.85 | 0.33
130x | 5.3 | 4.67 | 2.63 | 0.30
140x | 5.9 | 4.34 | 2.44 | 0.27
150x | 6.6 | 4.05 | 2.28 | 0.25
160x | 7.4 | 3.79 | 2.13 | 0.23
170x | 8.3 | 3.57 | 2.01 | 0.21
180x | 9.2 | 3.37 | 1.90 | 0.20
190x | 10.2 | 3.19 | 1.80 | 0.18
200x | 11.2 | 3.03 | 1.71 | 0.17
210x | 12.3 | 2.89 | 1.63 | 0.16
220x | 13.5 | 2.76 | 1.55 | 0.15

Notes
* Without front cap

Technical specifications

• Lighting / LED type: White
• Number of LEDs: 8
• Polarizer: Yes (adjustable)
• Magnification: 10x ~ 220x
• Working distance: Standard (values per optical table)
• Lens type: Global Shutter
• Sensor type: CMOS (global shutter)
• Resolution: 2.0 Megapixel (1920 x 1080)
• Maximum frame rate: 30 fps
• Interface: USB 2.0
• Operating system: Windows 10 / 11
• Software: DinoCapture 2.0, DinoCapture 3.0 (Windows)
• Supported image formats (Windows): BMP, PNG, TIF, JPG
• Supported video formats (Windows): DinoCapture 2.0: WMV, FLV, SWF; DinoCapture 3.0: MP4
• Housing material: Metal housing
• Magnification lock: Yes
• Dimensions: 130 mm (H) x 33 mm (D)
• Weight: Approx. 120 g
• Cable length: Type-C to Type-C Cable with Screw Lock (1.8 m); Type-C to Type-A Cable with Screw Lock (1.8 m)
• Special features: Enhanced Flexible LED Control (eFLC), Extended Dynamic Range (EDR), Extended Depth of Field (EDOF), Automatic Magnification Readout (AMR), Software Trigger, Depth Acquisition (DPQ), Auto and Manual Refocus
• Measurement: Yes (calibration supported)
• Microtouch sensor: Yes
• Package contents: Microscope, carry pouch, N3C-C (Close Cap), N3C-D (Diffuser Cap), N3C-D2 (Opal Diffuser Cap), N3C-E (Extended Open Cap), N3C-L (Long Cap), N3C-O (Open Cap), N3C-S (Sidelight Cap)
• Warranty information: 2 years European warranty
• Regulatory approval: CE, FCC, ROHS
• Price range (indicative): €1400,00 - €1600,00
