Digital video microscope AM4117MZTL

inspectioncompactLED

Product overview

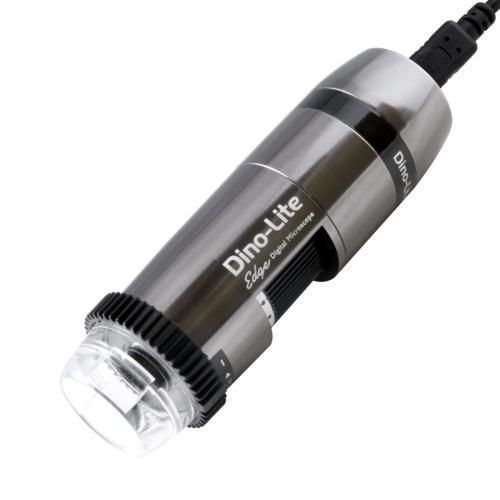

The Dino-Lite AM4117MZTL is an EDGE PLUS long working distance digital microscope offering 10–140x magnification, a 1.3 MP CMOS sensor (1280 x 960) and USB 2.0 connectivity at up to 30 fps. It is supplied in a compact metal housing with adjustable linear polarizer and Flexible LED Control for inspection and measurement tasks.

Main features

• EDGE PLUS 1.3 Megapixel sensor (1280 x 960)
• Flexible LED Control (FLC)
• 10–140x magnification range
• Long working distance optics
• Adjustable linear polarizer
• Up to 30 fps via USB 2.0
• Metal housing with magnification lock
• Measurement and calibration support
• ESD-safe design and Microtouch sensor

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
10 | 237.6 | 39.1 | 29.0 | 24.61
20 | 115.0 | 19.5 | 14.7 | 6.68
30 | 75.4 | 13.0 | 9.8 | 3.21
40 | 56.7 | 9.8 | 7.3 | 1.94
50 | 46.4 | 7.8 | 5.9 | 1.33
60 | 40.1 | 6.5 | 4.9 | 0.98
70 | 36.3 | 5.6 | 4.2 | 0.76
80 | 34.0 | 4.9 | 3.7 | 0.62
90 | 32.6 | 4.3 | 3.3 | 0.51
100 | 31.9 | 3.9 | 2.9 | 0.44
110 | 31.7 | 3.6 | 2.7 | 0.38
120 | 31.9 | 3.3 | 2.4 | 0.33
130 | 32.4 | 3.0 | 2.3 | 0.30
140 | 33.2 | 2.8 | 2.1 | 0.27
Listed values may differ slightly | *Without front cap | Unit = mm

Lighting and optics

• Light type: white LEDs (8 LEDs), on/off switchable
• Flexible LED Control (FLC) for adjustable illumination
• IR cut-filter >650 nm
• Diffuser included (N3C-D); emission filter not included
• Lens: glass with anti-reflection coating
• Macro zoom: no; polarizer: adjustable linear

Sensor and compatibility

• Sensor: CMOS 1.3 MP (1280 x 960)
• Maximum frame rate: 30 fps (USB 2.0)
• Interface: USB 2.0 (DirectShow, UVC)
• Operating systems: Windows 7/8/10/11, MacOS 11.1+
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported image/video formats: BMP, GIF, PNG, JPG, TIF, WMV, MOV, etc.
• WiFi: wireless-ready with optional WF-10 streamer

Housing, features & package

• Housing material: metal; ESD-safe design
• Magnification lock and Microtouch sensor
• Dimensions: 10.5 cm (L) x 3.2 cm (D); Weight: 130 g; Cable: 1.5 m
• Measurement and calibration supported; calibration target included
• Package contents: microscope, carry pouch, software CD, calibration target, user manual, multiple caps (N3C series)
• Regulatory: CE, FCC, ROHS; Warranty: 2 years (Europe)
• Price range (indicative): €900.00 - €1100.00

Technical specifications

• Model: AM4117MZTL
• Series: EDGE PLUS (Long Working Distance)
• Magnification: 10–140x
• Sensor resolution: 1.3 MP (1280 x 960)
• Interface: USB 2.0; Frame rate: up to 30 fps
• LEDs: 8 white LEDs, diffuser included
• Polarizer: adjustable linear
• Lens: glass with anti-reflection coating
• Housing: metal, ESD safe; Dimensions/weight/cable as above
• Compatibility: Windows (DinoCapture), Mac (DinoXcope)
• Included accessories: multiple caps, pouch, software CD, calibration target, manual
