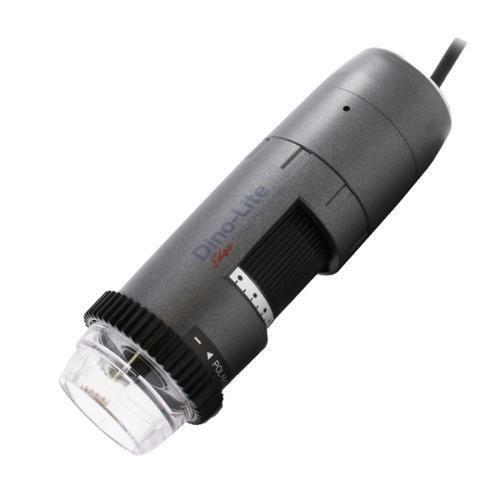

Digital video microscope AM4515ZT

inspectionlaboratorypolarized

Overview
The Dino-Lite AM4515ZT is a USB digital microscope designed for industrial and laboratory inspection. It provides 20x–220x magnification, an adjustable linear polarizer to reduce glare on shiny surfaces, and Automatic Magnification Reading (AMR) for fast, software-assisted measurements.

Key features

• Magnification: 20x–220x
• Adjustable linear polarizer to reduce reflections
• 8 white LEDs, LED on/off switchable; diffuser included (N3C-D)
• Glass lens with anti-reflection coating; magnification lock
• Automatic Magnification Reading (AMR) and calibrated measurement support
• Multiple interchangeable caps included: Open, Closed, Diffuser, Extension, Long, Side-light

Optical data table (Unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE 1 | WORKING DISTANCE 2* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20 | 52.7 | 60.2 | 19.5 | 15.6 | 2.5
30 | 26.0 | 33.5 | 13.0 | 10.4 | 1.8
40 | 13.4 | 20.9 | 9.8 | 7.8 | 1.5
50 | 6.4 | 13.9 | 7.8 | 6.3 | -
60 | 2.2 | 9.7 | 6.5 | 5.2 | -
70 | - | 7.1 | 5.6 | 4.5 | 1.0
80 | - | 5.5 | 4.9 | 3.9 | -
90 | - | 4.5 | 4.3 | 3.5 | -
100 | - | 4.1 | 3.9 | 3.1 | -
110 | - | 4.0 | 3.6 | 2.8 | -
120 | - | 4.1 | 3.3 | 2.6 | -
130 | - | 4.5 | 3.0 | 2.4 | -
140 | - | 5.0 | 2.8 | 2.2 | -
150 | - | 5.6 | 2.6 | 2.1 | -
160 | - | 6.3 | 2.4 | 2.0 | -
170 | - | 7.1 | 2.3 | 1.8 | -
180 | 0.5 | 8.0 | 2.2 | 1.7 | -
190 | 1.4 | 8.9 | 2.1 | 1.6 | -
200 | 2.4 | 9.9 | 2.0 | 1.6 | -
210 | 3.4 | 10.9 | 1.9 | 1.5 | -
220 | 4.4 | 11.9 | 1.8 | 1.4 | 0.1

Specification (summary)

• Lighting: White LEDs (8), LED on/off switchable; IR cut-filter >650 nm; Diffuser included (N3C-D)
• Optics: Magnification 20x–220x; Lens: Glass with anti-reflection coating; Macro zoom: No; Working distance: Standard
• Sensor: CMOS 1.3 Megapixel (1280x1024); Max frame rate 30 fps
• Compatibility: Interface USB 2.0; OS Windows 7/8/10/11 and MacOS 10.9+; Software DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Imaging standards: DirectShow, UVC; Supported formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX; Video: WMV, FLV, SWF
• Housing & physical: Composite/plastic housing; Magnification lock: Yes; Dimensions: 10.5 cm (L) x 3.2 cm (D); Weight: 105 g; Cable: 1.8 m
• Features: Automatic Magnification Reading (AMR); Measurement & calibration support; Microtouch sensor; ESD safe: No
• Regulatory: CE, FCC, ROHS

Package contents

• Microscope AM4515ZT
• Carry pouch
• Software CD
• Calibration target
• User manual
• N3C-O (Open cap), N3C-C (Closed cap), N3C-D (Diffuser cap), N3C-E (Extension cap), N3C-L (Long cap), N3C-S (Side light cap)

Also available
AM4515T - Edge without Polarizer

Notes
Warranty: 2 years (Europe). Price range (indicative): €600 - €800. * Without front cap
