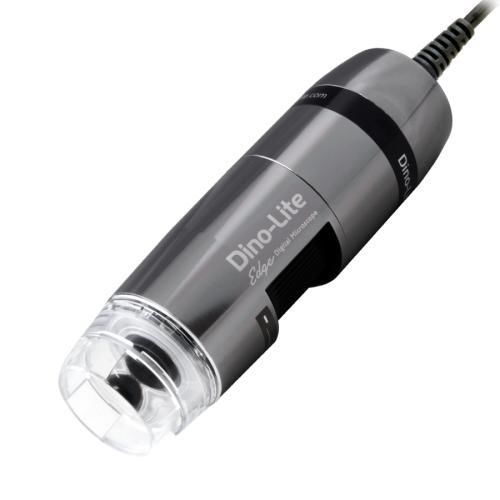

Digital video microscope AM7115MTF

inspectionLEDwhite light

Product overview
The Dino-Lite AM7115MTF is a 5.0 MP digital microscope designed for applications that require an extra-long working distance. It delivers high-resolution images and up to 70x magnification at a working distance of 108 mm, making it suitable for inspection, quality control and documentation tasks where space above the target is limited.

Image sensor and optics
The AM7115MTF uses a 5.0 megapixel CMOS sensor (2592×1944) with low-loss MJPEG compression for smooth image transmission. Edge-series optics with a glass lens and anti-reflection coating reveal fine detail across the magnification range.

Main features

• 5 MP Edge CMOS sensor
• Aluminum / metal housing
• Flexible LED Control (FLC) with 8 white LEDs
• Extensive measurement functions and calibration
• Microtouch sensor and ESD-safe design
• Exchangeable front caps (multiple types included)
• Magnification: 10x ~ 70x (up to 70x at 108 mm WD)

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
10 | 503 | 39.1 | 31.3 | 31.49
20 | 271 | 19.5 | 15.6 | 8.67
30 | 196 | 13.0 | 10.4 | 4.20
40 | 159 | 9.8 | 7.8 | 2.56
50 | 135 | 7.8 | 6.3 | 1.76
60 | 120 | 6.5 | 5.2 | 1.31
70 | 108 | 5.6 | 4.5 | 1.03

Additional technical notes
Interface: USB 2.0. Maximum frame rate: 30 fps. Imaging standards supported: DirectShow and UVC. The unit is wireless-ready but requires the optional WF-10 WiFi streamer for wireless operation. Supported OS and formats vary by platform (Windows / MacOS).

Included / Interchangeable caps and accessories

• Open cap (N3C-O)
• Closed cap (N3C-C)
• Diffuser cap (N3C-D) — included
• Extension cap (N3C-extension)
• Long cap (N3C-L)
• Side light cap (N3C-S)
• Carry pouch, software CD, calibration target, user manual

Technical specifications

• Model: AM7115MTF
• Brand: Dino-Lite
• Sensor: CMOS 5.0 MP (2592×1944)
• Magnification: 10x – 70x
• Working distance: Extra-long (example: 108 mm at 70x)
• Lighting: 8 white LEDs, on/off switchable, diffuser included (N3C-D)
• Lens: Glass with anti-reflection coating
• Frame rate: Up to 30 fps
• Interface: USB 2.0 (DirectShow, UVC)
• Compatibility: Windows 7/8/10/11, MacOS 10.9+ (see manufacturer for full details)
• Housing: Metal; Dimensions: 10.5 cm (L) × 3.2 cm (D); Weight: 125 g; Cable: 1.8 m
• Features: Flexible LED Control (FLC), measurement tools, calibration, microtouch sensor, ESD safe
• Regulatory & warranty: CE / FCC / ROHS; 2 years European warranty
• Package contents: Microscope, interchangeable caps, carry pouch, software CD, calibration target, user manual
• Indicative price range: €800.00 - €1000.00
