Digital video microscope AM73915MZTL

inspectionhand-heldportable

Overview

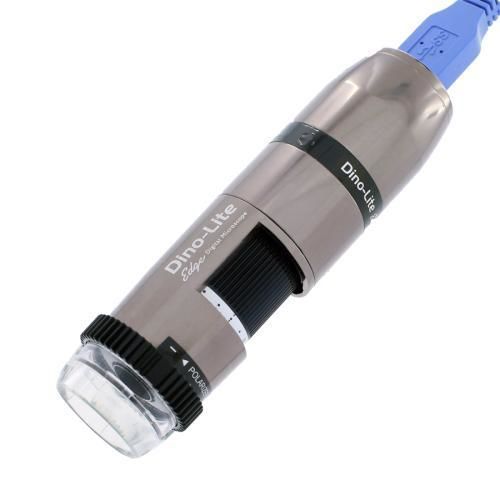

The Dino-Lite AM73915MZTL is a long working distance USB 3.0 digital microscope in the Dino-Lite Edge family. It integrates advanced optics with a 5.0 MP CMOS sensor to deliver uncompressed image capture, accurate colour reproduction and flexible illumination in a full metal housing.

USB 3.0 / Performance
USB 3.0 SuperSpeed provides up to 5 Gbit/s (625 MB/s) transfer. The AM73915MZTL supports image transfer up to 45 FPS at 1280 x 960 (maximum video recording 20 FPS), enabling the Edge optics to operate at full performance with improved colour fidelity and image detail.

Imaging enhancement functions

• EDOF (Extended Depth of Field): captures images at multiple depths and merges them into one image.
• EDR (Enhanced Dynamic Range): combines multiple exposures to extend dynamic range.
• AMR (Automatic Magnification Reading): automatic detection and embedding of magnification in captured images via Dino-Lite software.
• FLC (Flexible LED Control): advanced control of the integrated LEDs; built-in linear polarizer for reflection reduction.

Note
EDOF and EDR functions are available on Windows only.

Key capabilities

• Magnification range: 10x – 140x
• Long working distance up to 240 mm (without front cap)
• 5.0 Megapixel CMOS sensor (2560 x 1920)
• Extended Depth of Field (EDOF) and Enhanced Dynamic Range (EDR)
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC) and built-in linear polarizer
• Full metal housing with magnification lock
• Extensive measurement and calibration functions
• Exchangeable front caps and included diffuser cap

Optical data table (unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 234.5 | 39.0 | 29.2 | 12.0
20 | 112.5 | 19.5 | 14.6 | 4.5
30 | 72.5 | 13.0 | 9.7 | 3.1
40 | 54.5 | 9.8 | 7.3 | 1.8
50 | 43.5 | 7.8 | 5.8 | 1.2
60 | 37.5 | 6.5 | 4.8 | 0.9
70 | 33.7 | 5.6 | 4.2 | 0.6
80 | 31.3 | 4.9 | 3.6 | 0.5
90 | 29.9 | 4.3 | 3.2 | 0.37
100 | 29.2 | 3.9 | 2.9 | 0.28
110 | 29.1 | 3.5 | 2.6 | 0.22
120 | 29.3 | 3.3 | 2.4 | 0.17
130 | 29.8 | 3.0 | 2.2 | 0.12
140 | 30.5 | 2.8 | 2.1 | 0.09

Included / Additional notes
The device supports measurement and calibration and stores magnification with captured images. Multiple front caps and accessories are included (see specifications). EDOF/EDR functionality requires Windows.

Technical specifications

• Brand: Dino-Lite
• Model: AM73915MZTL
• Lighting / LED type: White, 8 LEDs (on/off switchable)
• Infrared filter: IR cut-filter >650 nm
• Diffuser: Yes (N3C-D included)
• Polarizer: Yes, linear
• Magnification: 10x ~ 140x
• Working distance: Long (up to 240 mm without front cap)
• Lens: Glass with anti-reflection coating
• Sensor: CMOS 5.0 MP (2560 x 1920)
• Maximum frame rate: 45 fps (max 20 fps video)
• Interface: USB 3.0 (cable included; Dino-Lite custom USB-A/USB-C)
• Operating systems: Windows 7/8/10/11; MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Imaging standards: DirectShow, UVC
• Housing material: Metal
• Magnification lock: Yes
• Dimensions: 119 mm (L) x 33 mm (H)
• Weight: 110 g
• Cable length: 1.8 m
• Special features: AMR, EDR, EDOF, FLC
• Measurement / Calibration: Yes
• Microtouch sensor: Yes
• ESD safe: Yes
• Package contents: Microscope, carry pouch, software CD, user manual, quick guide, calibration target, front covers N3C-O, N3C-C, N3C-D, N3C-E, N3C-L, N3C-S
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS
• Price range (indicative): EUR 1300 - EUR 1500
