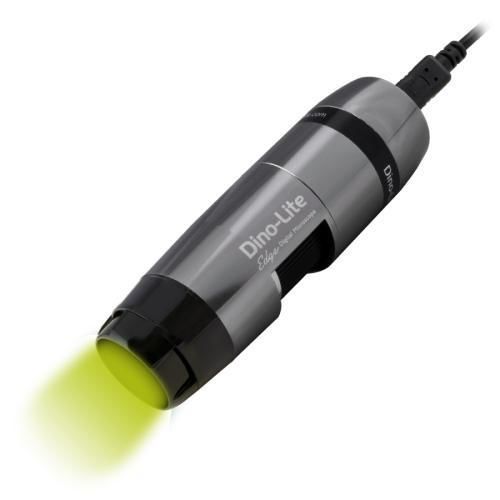

Digital video microscope AM4517MT

laboratoryfluorescenceLED fluorescence

Overview
The AM4517MT-GRFBY is a high-sensitivity digital fluorescence microscope offering 20x–220x magnification. It is designed to detect green and red fluorescence using 465 nm and 580 nm excitation LEDs. The unit includes Automatic Magnification Readout (AMR), dual-band emission filters and a metal housing for laboratory use.

Main features

• 1.3 Megapixel CMOS sensor (1280×960)
• High-sensitivity sensor optimized for low-light fluorescence
• Dual excitation LEDs: 4 × 465 nm + 4 × 580 nm (switchable)
• Dual-band emission filter: green 505–535 nm and red 610–650 nm
• Switchable white light for brightfield inspection
• Automatic Magnification Readout (AMR) for direct measurement
• Magnification lock and Microtouch sensor

Optical Data Table (Unit = mm; * Without front cap)
Magnification Rate | Working Distance * | Field of View (x) | Field of View (y) | Depth of Field
20x | 60.3 | 19.53 | 14.65 | 6.34
30x | 33.6 | 13.02 | 9.77 | 3.03
40x | 20.9 | 9.77 | 7.33 | 1.82
50x | 13.9 | 7.81 | 5.86 | 1.24
60x | 9.7 | 6.51 | 4.88 | 0.91
70x | 7.1 | 5.58 | 4.19 | 0.71
80x | 5.5 | 4.88 | 3.66 | 0.57
90x | 4.6 | 4.34 | 3.26 | 0.47
100x | 4.1 | 3.91 | 2.93 | 0.40
110x | 4.0 | 3.55 | 2.66 | 0.35
120x | 4.1 | 3.26 | 2.44 | 0.31
130x | 4.5 | 3.01 | 2.25 | 0.27
140x | 5.0 | 2.79 | 2.09 | 0.24
150x | 5.6 | 2.60 | 1.95 | 0.22
160x | 6.3 | 2.44 | 1.83 | 0.20
170x | 7.1 | 2.30 | 1.72 | 0.18
180x | 8.0 | 2.17 | 1.63 | 0.17
190x | 8.9 | 2.06 | 1.54 | 0.16
200x | 9.9 | 1.95 | 1.47 | 0.15
210x | 10.9 | 1.86 | 1.40 | 0.14
220x | 12.0 | 1.78 | 1.33 | 0.13

Technical specifications

• Lighting — LED excitation: 465 nm and 580 nm; 4 × 465 nm + 4 × 580 nm; on/off switchable
• Emission filter — Dual-band: green 505–535 nm and red 610–650 nm
• Supported fluorophores — GFP, RFP
• Optics — Magnification: 20x–220x; lens: glass with anti-reflection coating; working distance: see optical table
• Sensor — CMOS, 1.3 Megapixel (1280×960), max 30 fps
• Interface & software — USB 2.0; Windows 7/8/10/11 and MacOS 10.9+; DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Formats — Windows images: BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX; Windows video: WMV, FLV, SWF; Mac images: JPEG, PNG; Mac video: MOV
• Housing — Metal housing; dimensions: 104 mm (H) × 32 mm (D); weight: 92 g; cable: 1.8 m
• Functions — AMR, measurement, calibration, Microtouch sensor; magnification lock
• Package — Microscope, carry pouch, calibration target, user manual, N3C-C, N3C-EB, N3C-LB, N3C-OB
• Regulatory & warranty — CE, FCC, ROHS; 2 years European warranty
• Indicative price range — €1200.00 - €1400.00
