Digital video microscope AM73115MTF

inspectionhand-heldportable

Overview

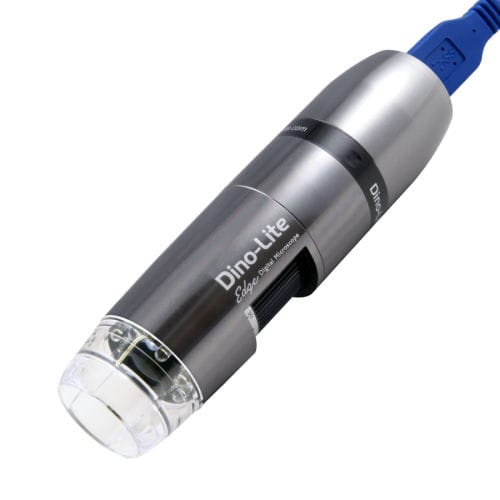

The Dino-Lite AM73115MTF is a USB 3.0 digital microscope from the Dino-Lite Edge High Speed range. It provides uncompressed 5 MP imaging, a 10x–70x magnification range and an extra-long working distance up to 480 mm (48 cm), with 108 mm distance to the object at 70x. The model is designed for professional inspection, measurement and documentation tasks that require large stand-off distance combined with fast image transfer.

Optical data
Unit = mm
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10x | 503 | 39.1 | 31.3 | 31.49
20x | 271 | 19.5 | 15.6 | 8.67
30x | 196 | 13.0 | 10.4 | 4.20
40x | 159 | 9.8 | 7.8 | 2.56
50x | 135 | 7.8 | 6.3 | 1.76
60x | 120 | 6.5 | 5.2 | 1.31
70x | 108 | 5.6 | 4.5 | 1.03

Specifications

• Lighting: 8 white LEDs, on/off switchable; diffuser available (N3C-D optional); IR cut-filter >650 nm.
• Optics: 10x–70x magnification; glass lens with anti-reflection coating; extra long working distance up to 480 mm (108 mm at 70x).
• Sensor: CMOS 5.0 MP (2560 x 1920); maximum capture rate up to 45 fps (image transfer), video recording up to 20 fps according to spec.
• Interface: USB 3.0 (SuperSpeed up to 5 Gbit/s); Dino-Lite custom USB-A/USB-C cable included.

Compatibility

• Operating systems: Windows 7/8/10/11 and MacOS 10.9+.
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac).
• Imaging standards and formats: DirectShow, UVC; multiple image and video formats supported on Windows and Mac.

Housing & mechanical

• Housing material: metal; ESD safe.
• Dimensions: 119 mm (L) x 33 mm (Ø); Weight: 110 g; Cable length: 1.8 m.
• Magnification lock: yes; exchangeable front caps supported.

Features & functions

• Flexible LED Control (FLC), measurement and calibration functions, Microtouch sensor.
• Extra-long working distance tuned for inspection of larger or inaccessible samples.

Package & compliance

• Package contents: microscope, carry pouch, software CD, user manual, quick guide, calibration target.
• Warranty: 2 years (Europe). Regulatory approvals: CE, FCC, ROHS.
