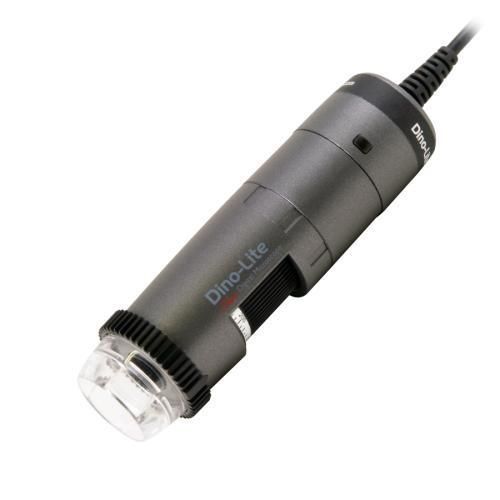

Digital video microscope AF4515ZTL

inspectionlaboratorypolarized

Description
The Dino-Lite AF4515ZTL is a handheld digital microscope designed for inspection and measurement tasks that require a long working distance. It connects via USB and is wireless-ready when used with the optional WF-20 adapter. The device is suitable for industrial inspection, quality control and laboratory applications where non-contact observation and measurement are needed.

Main features

• 1.3 Megapixel EDGE sensor (1280x1024)
• 10–140× magnification range
• Adjustable linear polarizer to reduce surface reflections
• Automatic Magnification Reading (AMR) for accurate scale reporting
• Flexible LED Control (FLC) for adjustable illumination
• Extensive measurement and calibration support
• Wireless-ready (requires optional WF-20 adapter)

Optical Data Table
Note: Unit = mm. * Without front cap
Magnification Rate | Working Distance * | Field of View (x) | Field of View (y) | Depth of Field
10 | 234.5 | 39.0 | 31.2 | 12
20 | 112.5 | 19.5 | 15.6 | 4.5
30 | 72.5 | 13.0 | 10.4 | 3.1
40 | 54.5 | 9.8 | 7.8 | 1.8
50 | 43.5 | 7.8 | 6.2 | 1.2
60 | 37.5 | 6.5 | 5.2 | 0.9
70 | 33.7 | 5.6 | 4.5 | 0.6
80 | 31.3 | 4.9 | 3.9 | 0.5
90 | 29.9 | 4.3 | 3.5 | 0.37
100 | 29.2 | 3.9 | 3.1 | 0.28
110 | 29.1 | 3.5 | 2.8 | 0.22
120 | 29.3 | 3.3 | 2.6 | 0.17
130 | 29.8 | 3.0 | 2.4 | 0.12
140 | 30.5 | 2.8 | 2.2 | 0.09

Specifications (summary)
Lighting: 8 white LEDs, LED on/off switchable; IR cut-filter >650 nm; diffuser (N3C-D) and linear polarizer included. Optics: 10×–140× magnification, glass lens with anti-reflection coating, long working distance. Sensor: CMOS 1.3 MP (1280x1024), up to 30 fps. Interface: USB 2.0; compatible with Windows 7/8/10/11 and MacOS 10.12+; software DinoCapture 2.0 (Windows), DinoXcope (Mac). Wireless-ready with WF-20 adapter.

Technical specifications

• Model: AF4515ZTL
• Brand: Dino-Lite
• Sensor resolution: 1.3 Megapixel (1280x1024)
• Magnification: 10× – 140×
• Working distance: Long (see optical data table)
• Field of view & depth of field: see optical data table
• LEDs: 8 white LEDs, switchable
• Polarizer: Linear, adjustable
• Diffuser: N3C-D included
• IR filter: IR cut-filter >650 nm
• Lens: Glass with anti-reflection coating
• Interface: USB 2.0
• OS compatibility: Windows 7/8/10/11, MacOS 10.12+
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Frame rate: up to 30 fps
• Standards: DirectShow, UVC
• Wireless: Wireless-ready (requires WF-20 adapter)
• Housing: Composite/plastic
• Magnification lock: Yes
• Dimensions: 11.4 cm (L) x 3.3 cm (D)
• Weight: 111 g
• Cable length: 1.8 m
• Measurement & calibration: Supported
• Microtouch sensor: Included
• ESD safe: No
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C caps (O, C, D, E, L, S)
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS
• Price range (excl. tax): €500.00 - €600.00
