Digital video microscope WF4515ZTL

inspectionportablewith LED light

Overview

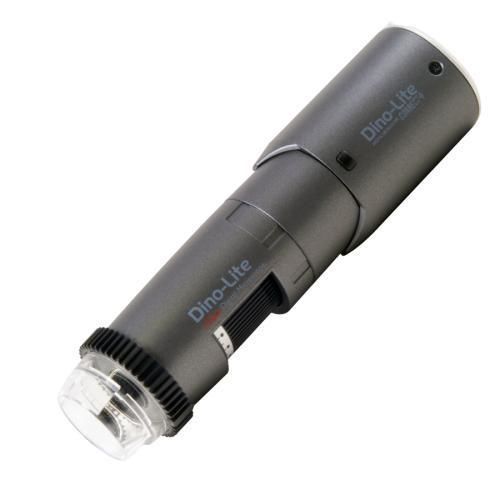

The WF4515ZTL is a portable digital microscope designed for long working distance (LWD) inspection and measurement tasks. It supports both wired USB 2.0 connection and wireless operation with the removable WF-20 adapter, and includes features tailored for measurement-intensive industrial applications such as Automatic Magnification Reading (AMR), an adjustable linear polarizer and Flexible LED Control (FLC).

Key features

• Wireless-capable solution (includes WF-20 adapter)
• 1.3 Megapixel Edge sensor (1280 x 1024)
• Magnification range: 10x – 140x
• Long Working Distance (LWD) for inspection of larger components
• Automatic Magnification Reading (AMR) for calibrated measurements
• Adjustable linear polarizer
• Flexible LED Control (FLC) with diffuser option
• Extensive measurement and calibration functions
• Microtouch sensor for quick capture

Optical Data Table
10x — Working Distance: 234.5 mm; Field of View (x): 39.0 mm; Field of View (y): 31.2 mm; Depth of Field: 12 mm
20x — Working Distance: 112.5 mm; Field of View (x): 19.5 mm; Field of View (y): 15.6 mm; Depth of Field: 4.5 mm
30x — Working Distance: 72.5 mm; Field of View (x): 13.0 mm; Field of View (y): 10.4 mm; Depth of Field: 3.1 mm
40x — Working Distance: 54.5 mm; Field of View (x): 9.8 mm; Field of View (y): 7.8 mm; Depth of Field: 1.8 mm
50x — Working Distance: 43.5 mm; Field of View (x): 7.8 mm; Field of View (y): 6.2 mm; Depth of Field: 1.2 mm
60x — Working Distance: 37.5 mm; Field of View (x): 6.5 mm; Field of View (y): 5.2 mm; Depth of Field: 0.9 mm
70x — Working Distance: 33.7 mm; Field of View (x): 5.6 mm; Field of View (y): 4.5 mm; Depth of Field: 0.6 mm
80x — Working Distance: 31.3 mm; Field of View (x): 4.9 mm; Field of View (y): 3.9 mm; Depth of Field: 0.5 mm
90x — Working Distance: 29.9 mm; Field of View (x): 4.3 mm; Field of View (y): 3.5 mm; Depth of Field: 0.37 mm
100x — Working Distance: 29.2 mm; Field of View (x): 3.9 mm; Field of View (y): 3.1 mm; Depth of Field: 0.28 mm
110x — Working Distance: 29.1 mm; Field of View (x): 3.5 mm; Field of View (y): 2.8 mm; Depth of Field: 0.22 mm
120x — Working Distance: 29.3 mm; Field of View (x): 3.3 mm; Field of View (y): 2.6 mm; Depth of Field: 0.17 mm
130x — Working Distance: 29.8 mm; Field of View (x): 3.0 mm; Field of View (y): 2.4 mm; Depth of Field: 0.12 mm
140x — Working Distance: 30.5 mm; Field of View (x): 2.8 mm; Field of View (y): 2.2 mm; Depth of Field: 0.09 mm

Note
Listed values may differ slightly. * Without front cap. Unit = mm.

Additional information
The WF4515ZTL integrates measurement-ready features (AMR, calibration support), Flexible LED Control (FLC) and an adjustable polarizer, making it suitable for quality control, failure analysis and component inspection in industrial environments. Wireless use requires the WF-20 adapter; USB 2.0 provides wired operation and software compatibility.

Specifications / Technical specifications

• Model: WF4515ZTL
• Type: Portable digital microscope, Long Working Distance (LWD), wired/wireless
• Magnification: 10x – 140x
• Sensor resolution: 1.3 MP (1280 x 1024)
• Frame rate max: 30 fps
• Interface: USB 2.0 (cable), Wireless (WF-20 adapter)
• Illumination: 8 white LEDs, FLC, IR cut-filter (>650 nm), diffuser included (N3C-D)
• Polarizer: Linear, adjustable
• Measurement: AMR, calibration support
• Housing: Composite/plastic; Dimensions: 114 mm (L) x 33 mm (D)
• Weight: 111 g; Cable length: 1.8 m
• Accessories included: WF-20, carry pouch, software CD, calibration target, user manual, caps (N3C-O, N3C-C, N3C-D, N3C-E, N3C-L, N3C-S)
• Warranty & compliance: 2 years (Europe); CE, FCC, RoHS
• Indicative price range: €900.00 - €1100.00
