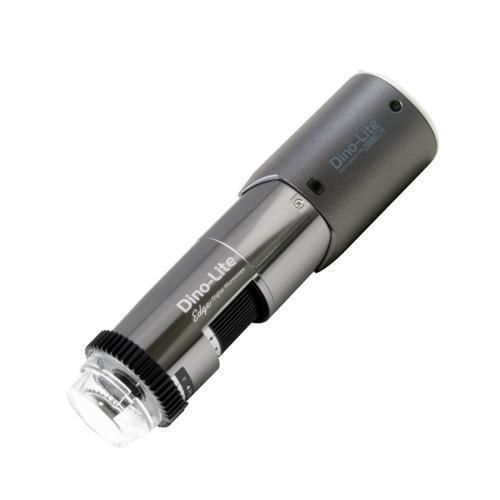

Digital video microscope WF7515MZT

inspectionlaboratoryfor research

Overview
With advanced optics, a 5.0 megapixel Edge CMOS sensor and professional functions such as Flexible LED Control (FLC), Automatic Magnification Reading (AMR) and a full aluminum housing, the Dino-Lite WF7515MZT is designed for demanding inspection, documentation and measurement tasks. It provides accurate color reproduction and high-resolution images in a compact, durable housing.

Main features

• 5.0 Megapixel Edge CMOS sensor (2592×1944)
• Magnification range: 10–220x (page) / 20–220x (spec table)
• Integrated linear polarizer for reflective surfaces
• Flexible LED Control (FLC) and 8 white LEDs (on/off)
• Automatic Magnification Reading (AMR) for fast, reliable measurements
• Aluminum/metal housing, 10.5 cm × 3.2 cm, 135 g
• USB 2.0 interface and wireless (Wi‑Fi) option
• Extensive measurement and calibration functions; ESD safe

Applications
Part of the universal range with a standard working distance and wide magnification span, the WF7515MZT is suitable for visual inspection and measurement of shiny or reflective objects such as metal, plastic, glass, jewelry and electronic components. The integrated polarizer reduces glare and the AMR function speeds up repetitive measurement workflows. Wireless capability enables flexible inspection setups.

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE 1 | WORKING DISTANCE 2* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | - | 142.6 | 39.6 | 29.7 | 2.6
20 | 52.7 | 60.1 | 19.5 | 15.6 | 2.5
30 | 26.0 | 33.5 | 13.0 | 10.4 | 1.8
40 | 13.4 | 20.9 | 9.8 | 7.8 | 1.5
50 | 6.4 | 13.9 | 7.8 | 6.3 | -
60 | 2.2 | 9.7 | 6.5 | 5.2 | -
70 | - | 7.1 | 5.6 | 4.5 | 1.0
80 | - | 5.5 | 4.9 | 3.9 | -
90 | - | 4.5 | 4.3 | 3.5 | -
100 | - | 4.1 | 3.9 | 3.1 | -
110 | - | 4.0 | 3.6 | 2.8 | -
120 | - | 4.1 | 3.3 | 2.6 | -
130 | - | 4.5 | 3.0 | 2.4 | -
140 | - | 5.0 | 2.8 | 2.2 | -
150 | - | 5.6 | 2.6 | 2.1 | -
160 | - | 6.3 | 2.4 | 2.0 | -
170 | - | 7.1 | 2.3 | 1.8 | -
180 | - | 8.0 | 2.2 | 1.7 | -
190 | - | 8.9 | 2.1 | 1.6 | -
200 | - | 9.9 | 2.0 | 1.6 | -
210 | - | 10.9 | 1.9 | 1.5 | -
220 | - | 11.9 | 1.8 | 1.4 | 0.1
(* Without front cap. Unit = mm.)

Technical specifications

• Lighting: White LEDs (8), LED on/off switchable; Flexible LED Control (FLC); IR cut-filter >650 nm; Diffuser included (N3C-D)
• Optics: Magnification: 20x ~ 220x (product page indicates 10–220x); lens: glass with anti-reflection coating; working distance: standard
• Sensor: CMOS Edge sensor, 5.0 MP (2592×1944), max 30 fps
• Compatibility: USB 2.0 (cable), Wi‑Fi capable; OS: Windows 7/8/10/11 (cable & wireless as specified), MacOS 10.11.6+ (cable only); Software: DinoCapture 2.0 (Windows), DinoXcope (Mac), DinoConnect (wireless)
• Housing: Metal / aluminum housing; Dimensions: 10.5 cm (L) x 3.2 cm (D); Weight: 135 g; Cable length: 1.8 m
• Features: Automatic Magnification Reading (AMR), Flexible LED Control (FLC), measurement and calibration functions, microtouch sensor, ESD safe

Package & warranty
Package contents: microscope, carry pouch, software CD, calibration target, user manual, N3C-O (Open cap), N3C-C (Closed cap), N3C-D (Diffuser cap), N3C-E (Extension cap), N3C-L (Long cap), N3C-S (Side light cap). Warranty: 2 years European warranty. Regulatory approvals: CE, FCC, ROHS. Indicative price range: EUR 1400–1600.
