Digital video microscope AF7115MZTL

inspectionpolarizinghand-held

Product overview

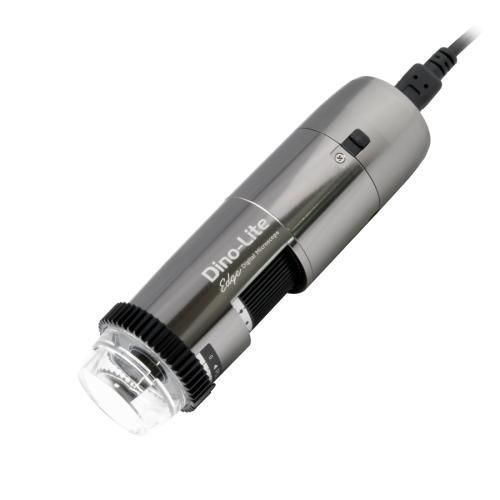

AF7115MZTL is a long working distance 5-megapixel digital microscope that delivers high-resolution images across a 10x–140x magnification range. The model features Flexible LED Control (FLC) for adjustable illumination and an integrated linear polarizer to reduce reflections. AF7115MZTL is wireless-ready with the optional WF-20 module.

Applications
The AF7115MZTL belongs to the Long Working Distance (LWD) family. Its extended working distance and wide field of view make it well suited for repair, rework, assembly and inspection of bulky or fragile objects that cannot be touched. The built-in polarizer is useful when inspecting shiny or reflective materials such as metal, plastic, glass, jewelry and electronic components.

Main features

• 5 megapixel Edge CMOS sensor (2592x1944)
• Long Working Distance (LWD)
• 10–140x magnification
• Integrated linear polarizer
• Aluminum / metal housing
• Flexible LED Control (FLC) with 8 white LEDs
• Extensive measurement and calibration functions
• Exchangeable front caps (including diffuser N3C-D)
• Wireless-ready (requires WF-20)
• Microtouch sensor and ESD-safe design

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 237.5 | 39.6 | 29.7 | 25.8
20 | 115.3 | 19.8 | 14.8 | 6.9
30 | 75.9 | 13.2 | 9.9 | 3.3
40 | 57.3 | 9.9 | 7.4 | 2.2
50 | 47.0 | 7.9 | 5.9 | 1.6
60 | 40.8 | 6.6 | 4.9 | 1.2
70 | 36.9 | 5.7 | 4.2 | 1.0
80 | 34.6 | 4.9 | 3.7 | 0.8
90 | 33.2 | 4.4 | 3.3 | 0.7
100 | 32.6 | 4.0 | 3.0 | 0.6
110 | 32.4 | 3.6 | 2.7 | 0.5
120 | 32.6 | 3.3 | 2.5 | 0.5
130 | 33.1 | 3.0 | 2.3 | 0.4
140 | 33.8 | 2.8 | 2.1 | 0.4

Specification (detailed)
Lighting:
Light / LED type: White
Number of LEDs: 8
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: Yes (N3C-D included)
Emission filter: No
Polarizer: Yes, linear

Optics:
Magnification: 10x ~ 140x
Macro zoom: No
Working distance: Long
Lens type: Glass with anti-reflection coating

Sensor:
Sensor type: CMOS
Resolution: 5.0 Megapixel (2592x1944)
Maximum frame rate: 30 fps

Compatibility:
Interface: USB 2.0
Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and up
Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV (max 1.3MP)
Imaging standards: DirectShow, UVC
Wifi: Wireless-ready, requires the WF-20 (optional)

Housing:
Housing material: Metal housing
Magnification lock: Yes
Dimensions: 11.5 cm (L) x 3.4 cm (D)
Weight: 97 g
Cable length: 1.8 m

Features:
Special feature: Flexible LED Control (FLC)
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: Yes

Information:
Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O (Open cap), N3C-C (Closed cap), N3C-D (diffuser cap), N3C-E (extension cap), N3C-L (Long cap), N3C-S (Side light cap)
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
Price range: €900.00 - €1100.00

Technical specifications (summary)

• Model: AF7115MZTL
• Magnification: 10x ~ 140x
• Sensor resolution: 5.0 Megapixel (2592x1944)
• Maximum frame rate: 30 fps
• Interface: USB 2.0
• Operating systems: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• LEDs: 8 white LEDs, switchable, Flexible LED Control (FLC)
• Polarizer: Linear, integrated
• Diffuser: N3C-D included
• IR cut-filter: >650 nm
• Working distance: Long (LWD)
• Lens: Glass with anti-reflection coating
• Housing: Metal / aluminum
• Dimensions: 11.5 cm (L) x 3.4 cm (D)
• Weight: 97 g
• Cable length: 1.8 m
• Measurement & calibration: Yes
• Microtouch sensor: Yes
• ESD safe: Yes
• Wireless: Wireless-ready (requires WF-20)
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, multiple front caps (Open, Closed, Diffuser, Extension, Long, Side light)
• Warranty: 2 years European warranty
• Regulatory: CE, FCC, ROHS
• Price range (indicative): €900.00 - €1100.00
