Digital video microscope AF4135ZTE

inspectionlaboratorypolarizing

Product overview

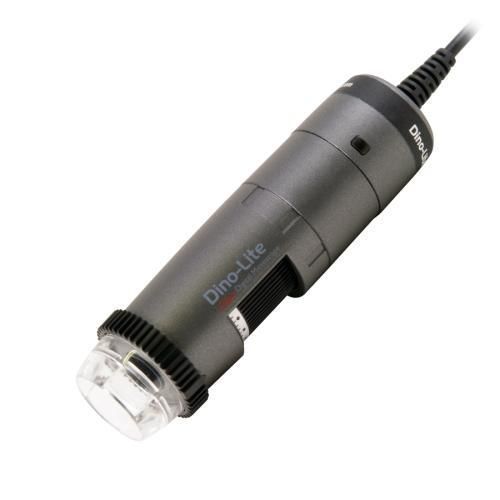

The Dino-Lite AF4135ZTE is a handheld digital microscope offering a wide magnification range of 10x–330x for detailed inspection across laboratory, quality control and field applications. It integrates an adjustable linear polarizer, Flexible LED Control (FLC), measurement and calibration functions, a Microtouch sensor and is wireless-ready with the optional WF-20 Wi‑Fi adapter. Compared with the AM4x15 series, the AF4x35 family provides similar working distances and higher maximum magnifications.

Main features

• Magnification: 10x–330x
• 1.3 MP CMOS sensor (1280×1024) — up to 30 fps
• Adjustable linear polarizer
• Flexible LED Control (FLC) with 8 white LEDs, LED on/off
• Extensive measurement and calibration functions
• Microtouch sensor for hands-free capture
• Wireless-ready via WF-20 adapter (optional)

Optical data
MAGNIFICATION — WORKING DISTANCE — FIELD OF VIEW (X) — FIELD OF VIEW (Y) — DEPTH OF FIELD
10 — 222.3 — 39.1 — 29.3 — 55.5
20 — 98.9 — 19.5 — 14.7 — 14.6
30 — 58.5 — 13.0 — 9.8 — 6.8
40 — 38.7 — 9.8 — 7.3 — 4.0
50 — 27.2 — 7.8 — 5.9 — 2.7
60 — 19.9 — 6.5 — 4.9 — 2.0
70 — 14.9 — 5.6 — 4.2 — 1.5
80 — 11.5 — 4.9 — 3.7 — 1.2
90 — 9.0 — 4.3 — 3.3 — 1.0
100 — 7.2 — 3.9 — 2.9 — 0.8
110 — 5.9 — 3.6 — 2.7 — 0.7
120 — 4.9 — 3.3 — 2.4 — 0.6
130 — 4.3 — 3.0 — 2.3 — 0.5
140 — 3.9 — 2.8 — 2.1 — 0.5
150 — 3.7 — 2.6 — 2.0 — 0.4
160 — 3.6 — 2.4 — 1.8 — 0.4
170 — 3.7 — 2.3 — 1.7 — 0.4
180 — 3.8 — 2.2 — 1.6 — 0.3
190 — 4.1 — 2.1 — 1.5 — 0.3
200 — 4.4 — 2.0 — 1.5 — 0.3
210 — 4.7 — 1.9 — 1.4 — 0.3
220 — 5.2 — 1.8 — 1.3 — 0.2
230 — 5.6 — 1.7 — 1.3 — 0.2
240 — 6.2 — 1.6 — 1.2 — 0.2
250 — 6.7 — 1.6 — 1.2 — 0.2
260 — 7.3 — 1.5 — 1.1 — 0.2
270 — 7.9 — 1.4 — 1.1 — 0.2
280 — 8.5 — 1.4 — 1.0 — 0.2
290 — 9.2 — 1.3 — 1.0 — 0.2
300 — 9.9 — 1.3 — 1.0 — 0.2
310 — 10.6 — 1.3 — 0.9 — 0.2
320 — 11.3 — 1.2 — 0.9 — 0.1
330 — 12.0 — 1.2 — 0.9 — 0.1

Specifications

• Lighting: White LEDs (8), LED on/off switchable; IR cut-filter >650 nm; diffuser N3C-D included; emission filter: no; polarizer: adjustable linear
• Optics: Magnification 10x–330x; lens: glass with anti-reflection coating; working distance: standard (see optical data)
• Sensor: 1.3 MP CMOS (1280×1024), maximum 30 fps
• Compatibility: Interface USB 2.0; Windows 7/8/10/11 and MacOS 10.14+; software DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Housing: Composite/plastic; dimensions 11.4 cm × 3.3 cm; weight 111 g; cable length 1.8 m
• Features: Flexible LED Control (FLC); measurement and calibration; Microtouch sensor
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O (open cap), N3C-C (closed cap), N3C-D (diffuser cap), N3C-E (extension cap), N3C-L (long cap), N3C-S (side light cap)
• Warranty & regulatory: 2 years European warranty; CE, FCC, RoHS
• Price range (indicative): EUR 550 - 750
