Optical video microscope AM4515T5 - EDGE

digitalinspectionfor materials research

Product overview

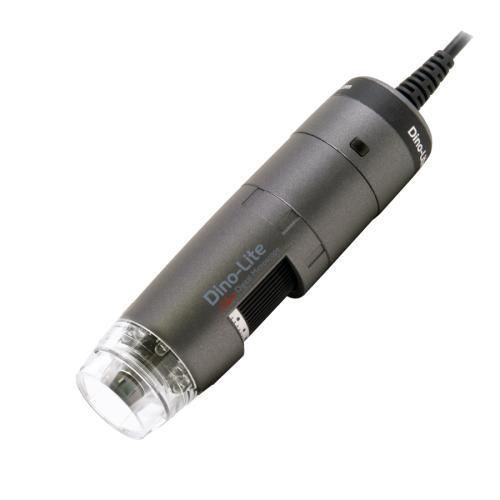

The Dino-Lite AM4515T5 - EDGE is a portable high-magnification inspection microscope providing 500–550x optical magnification and high-resolution optics that resolve details down to 2.5 µm. It offers an extended working distance at high magnification to simplify observation and manipulation of very small objects. Typical applications include biomedical and scientific research, materials analysis and electronics inspection where mobility and versatile high magnification are required.

Included software and operation
The AM4515T5 is bundled with DinoCapture 2.0 for Windows and is compatible with DinoXcope for Mac. Key functions: Automatic Magnification Reading (AMR), calibration, measurement, image capture and annotation, and video recording. Handheld use is possible; for stable, precision work a high-precision stand such as the Dino-Lite RK-10A is recommended.

Optical Data Table
MAGNIFICATION RATE: 500x — WORKING DISTANCE*: 9.5 mm — FIELD OF VIEW (X): 0.8 mm — FIELD OF VIEW (Y): 0.6 mm — DEPTH OF FIELD: 0.15 mm
MAGNIFICATION RATE: 550x — WORKING DISTANCE*: 9.2 mm — FIELD OF VIEW (X): 0.7 mm — FIELD OF VIEW (Y): 0.6 mm — DEPTH OF FIELD: 0.12 mm
(Listed values may differ slightly; Unit = mm; * Without front cap)

Specification
Lighting: White LEDs (8), LED on/off switchable; IR cut-filter >650 nm; diffuser/emission filter/polarizer: No.
Optics: 500x–550x magnification; glass lens with anti-reflection coating; standard working distance.
Sensor: CMOS 1.3 MP (1280x1024), max 30 fps.
Compatibility: USB 2.0; Windows 7/8/10/11, MacOS 10.9+; Software: DinoCapture 2.0 (Windows), DinoXcope (Mac); Imaging standards: DirectShow, UVC; WiFi: wireless-ready with optional WF-10 streamer.
Housing: Composite/plastic; dimensions 10.5 cm (L) x 3.2 cm (D); weight 105 g; cable 1.8 m.

Technical specifications

• Model: AM4515T5 - EDGE
• Brand: Dino-Lite
• Magnification: 500x–550x
• Optical resolution: resolves details down to 2.5 µm
• Sensor: CMOS 1.3 MP (1280 x 1024)
• Max frame rate: 30 fps
• Working distance: ~9.2–9.5 mm (without front cap)
• Field of view: ~0.7–0.8 mm (X) x 0.6 mm (Y)
• Depth of field: 0.12–0.15 mm
• Lens: Glass with anti-reflection coating
• Illumination: 8 white LEDs, on/off switchable; IR cut-filter >650 nm
• Interface: USB 2.0
• Supported OS: Windows 7/8/10/11, MacOS 10.9+
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Imaging standards: DirectShow, UVC
• Housing: Composite/plastic
• Dimensions: 10.5 cm (L) x 3.2 cm (D); Weight: 105 g; Cable: 1.8 m
• Special features: Automatic Magnification Reading (AMR), measurement, calibration, microtouch sensor
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O/N3C-C/N3C-E caps
• Warranty: 2 years European warranty
• Regulatory: CE, FCC, ROHS
• Price range: €600,00 - €800,00
