Digital video microscope AG5715MZT

inspectionLEDwith LED light

Product overview

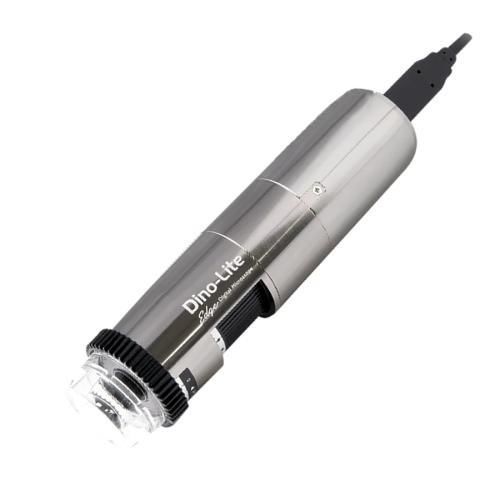

The Dino-Lite AG5715MZT is an industrial digital microscope equipped with a global shutter sensor for distortion-free live imaging of moving subjects. External and software triggers allow synchronized capture in automated inspection setups and robotic systems, with strobe/LED flash options for precisely timed frame acquisition. With a 2.0 MP sensor and a 10x–220x magnification range, the AG5715MZT is designed for trigger-based imaging in dynamic inspection environments.

Key highlights

• Global shutter for distortion-free imaging
• 10x–220x optical magnification
• 2.0 Megapixel CMOS sensor (1920 x 1080)
• Software trigger and external trigger support
• Strobe output and LED flash mode
• Enhanced Flexible LED Control (eFLC)
• Adjustable polarizer
• Extended Dynamic Range (EDR)
• Automatic Magnification Readout (AMR)
• Robust metal housing

Optical data table
Magnification Rate | Working Distance (mm) | Field of View (x) | Field of View (y) | Depth of Field (mm)
10x | 137.3 | 60.70 | 34.14 | 24.49
20x | 57.2 | 30.35 | 17.07 | 6.62
30x | 31.4 | 20.23 | 11.38 | 3.17
40x | 19.3 | 15.17 | 8.54 | 1.91
50x | 12.6 | 12.14 | 6.83 | 1.30
60x | 8.7 | 10.12 | 5.69 | 0.96
70x | 6.2 | 8.67 | 4.88 | 0.75
80x | 4.8 | 7.59 | 4.27 | 0.60
90x | 4.0 | 6.74 | 3.79 | 0.50
100x | 3.7 | 6.07 | 3.41 | 0.43
110x | 3.6 | 5.52 | 3.10 | 0.37
120x | 3.9 | 5.06 | 2.85 | 0.32
130x | 4.3 | 4.67 | 2.63 | 0.29
140x | 4.9 | 4.34 | 2.44 | 0.26
150x | 5.6 | 4.05 | 2.28 | 0.23
160x | 6.4 | 3.79 | 2.13 | 0.21
170x | 7.2 | 3.57 | 2.01 | 0.20
180x | 8.2 | 3.37 | 1.90 | 0.18
190x | 9.2 | 3.19 | 1.80 | 0.17
200x | 10.2 | 3.03 | 1.71 | 0.16
210x | 11.3 | 2.89 | 1.63 | 0.15
220x | 12.4 | 2.76 | 1.55 | 0.14

Technical specifications
Lighting

• Type: Stroboscopic LED; Number of LEDs: 8; Polarizer: Yes

Optics

• Magnification: 10x ~ 220x; Working distance: Standard (see optical data table); Lens type: Global shutter optics

Sensor

• Type: CMOS; Resolution: 2.0 Megapixel (1920 x 1080); Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0; Operating system: Windows 10/11; Software: DinoCapture 2.0, DinoCapture 3.0 (Windows)
• Supported image formats (Windows): BMP, PNG, TIF, JPG
• Supported video formats (Windows): DinoCapture 2.0: WMV, FLV, SWF; DinoCapture 3.0: MP4

Housing and dimensions

• Material: Metal housing; Magnification lock: Yes; Dimensions: 130 mm (H) x 33 mm (D); Weight: Approx. 120 g
• Cable length: Type-C to Type-C with screw lock (1.8 m); Type-C to Type-A with screw lock (1.8 m)

Features

• Enhanced Flexible LED Control (eFLC), Extended Dynamic Range (EDR), Automatic Magnification Readout (AMR)
• Trigger options: Software trigger, External trigger; Strobe output and LED flash mode

Measurement & calibration

• Measurement: Yes; Calibration: Yes; Microtouch sensor: Yes

Package contents & warranty

• Package: Microscope, carry pouch, N3C-C (Close Cap), N3C-D (Diffuser Cap), N3C-D2 (Opal Diffuser Cap), N3C-E (Extended Open Cap), N3C-L (Long Cap), N3C-O (Open Cap), N3C-S (Sidelight Cap)
• Model: AG5715MZT; Brand: Dino-Lite
• Warranty: 2 years (European warranty)
• Regulatory approvals: CE, FCC, ROHS
• Indicative price range: €1200.00 - €1400.00
