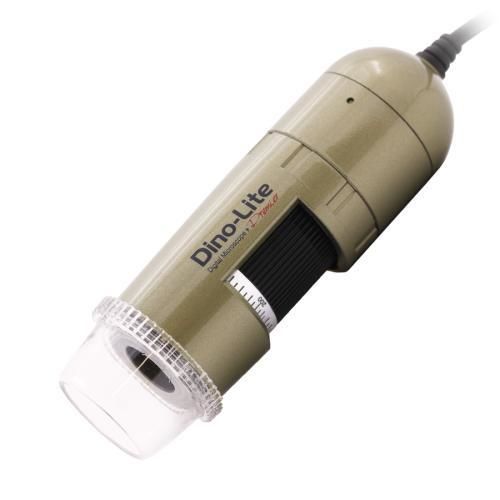

Digital video microscope AM4113ZTL

inspectionlaboratoryfor materials research

Product overview
The Dino-Lite AM4113ZTL is a digital USB microscope equipped with a linear polarizer for reducing glare on highly reflective materials (plastics, metals). It offers 10x–90x magnification and a long working distance, making it suitable for inspection, quality control and R&D in industrial environments.

Key features

• Linear polarizer to reduce surface glare
• Long working distance for comfortable inspection
• Magnification range: 10x ~ 90x (zoom)
• White LED illumination — 8 LEDs, on/off switchable
• IR cut-filter >650 nm
• Glass lens with anti-reflection coating
• CMOS sensor, 1.3 MP (1280x1024), up to 30 fps
• USB 2.0 interface (DirectShow, UVC)
• Measurement, calibration and Microtouch sensor supported
• Wireless-ready with optional WF-10 WiFi streamer
• Magnification lock for stable imaging

Optical data (examples)
20x — WD 151.0 mm | FOV X 19.6 mm | FOV Y 15.6 mm | DOF 6 mm
30x — WD 101.0 mm | FOV X 13.0 mm | FOV Y 10.4 mm | DOF 3.4 mm
40x — WD 77.2 mm | FOV X 9.8 mm | FOV Y 7.8 mm | DOF 2.2 mm
50x — WD 64.1 mm | FOV X 7.8 mm | FOV Y 6.3 mm | DOF 1.65 mm
60x — WD 56.2 mm | FOV X 6.5 mm | FOV Y 5.2 mm | DOF (not provided)
70x — WD 51.3 mm | FOV X 5.6 mm | FOV Y 4.5 mm | DOF (not provided)
80x — WD 48.3 mm | FOV X 4.9 mm | FOV Y 3.9 mm | DOF (not provided)
90x — WD 46.6 mm | FOV X 4.3 mm | FOV Y 3.5 mm | DOF 0.8 mm
Listed values may differ slightly — units = mm

Technical specifications

• Sensor: CMOS, 1.3 Megapixel (1280x1024), max 30 fps
• Optics: 10x–90x magnification, glass lens with anti-reflection coating
• Lighting: 8 white LEDs, switchable; IR cut-filter >650 nm; linear polarizer integrated
• Interface & software: USB 2.0 (DirectShow, UVC); DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Compatibility: Windows 7/8/10/11, MacOS 10.9+
• Housing & dimensions: Composite/plastic housing; 10.5 cm (L) x 3.2 cm (D); weight 105 g; cable 1.8 m
• Functions: Measurement, calibration, Microtouch sensor; magnification lock

Applications

• Inspection of reflective parts and surfaces in manufacturing
• Electronics and PCB inspection
• Material surface analysis (plastics, metals)
• Laboratory inspection and R&D

Package & certifications
Package contents: microscope, carry pouch, software CD, calibration target, ZT-Z-CC1 cap closure, user manual. Warranty: 2 years (EU). Regulatory: CE, FCC, ROHS. Wireless-ready: requires optional WF-10 WiFi streamer.
