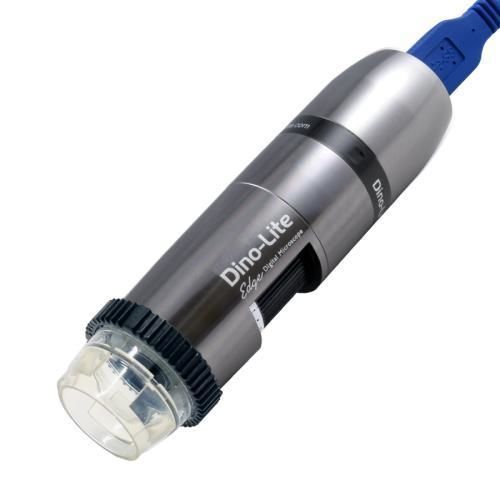

Digital video microscope AM73915MT8

inspectionLEDwhite light

Description
The Dino-Lite AM73915MT8 is a USB digital inspection microscope designed for high-magnification visual inspection and measurement in industrial and laboratory environments. At 700–900x magnification the small depth of field can complicate focusing; the AM73915MT8 integrates EDOF (Extended Depth of Field) to generate focus-stacked images and offers DPQ, EDR, AMR and eFLC to assist image acquisition. The device delivers smooth live imaging (5.0 MP at 15 fps or 1.3 MP at 45 fps) and click-to-focus for fast targeting.

Note
EDOF, EDR and DPQ advanced functions are available on Windows PC only.

Main features

• 5.0 Megapixel CMOS sensor (2560 x 1920)
• Extended Depth of Field (EDOF) for focus stacking
• Extended Dynamic Range (EDR)
• Depth acquisition (DPQ) and Automatic Magnification Reading (AMR)
• Enhanced Flexible LED Control (eFLC) with 8 white LEDs
• Polarizer (anti-reflection)
• 700–900x magnification range
• Click-to-focus and measurement/calibration support

Optical Data Table (unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
700 | 5.82 | 0.558 | 0.419 | 0.00985
750 | 5.74 | 0.521 | 0.391 | 0.00973
800 | 5.68 | 0.488 | 0.366 | 0.00956
850 | 5.62 | 0.460 | 0.345 | 0.00937
900 | 5.57 | 0.434 | 0.326 | 0.00915

Specification
Lighting

• Light / LED type: White
• Number of LEDs: 8

Optics

• Magnification: 700x ~ 900x

Sensor

• Sensor type: CMOS
• Resolution: 5.0 Megapixel (2560 x 1920)
• Maximum frame rate: 15 fps @ 5.0 MP (YUY2, USB 3.0); 45 fps @ 1.3 MP (YUY2, USB 3.0); 15 fps @ 1.3 MP (YUY2, USB 2.0)

Compatibility

• Interface: USB 3.0, cable included
• Operating system: Windows 7/8/10/11, macOS 10.14 or later
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported image formats (Windows): BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image/video formats (macOS): PNG, JPEG / MOV

Housing

• Housing material: Metal
• Dimensions: 11.9 cm (H) x 3.3 cm (D)
• Weight: 110 g

Features

• Measurement: Yes
• Calibration: Yes
• Microtouch sensor: Yes

Information

• Warranty: 2 years (European warranty)
• Regulatory approvals: CE, FCC, RoHS
• Indicative price range: €1400,00 - €1700,00

Technical characteristics

• Brand: Dino-Lite
• Model / Product code: AM73915MT8
• Sensor: CMOS, 5.0 MP (2560 x 1920)
• Frame rates: 15 fps @ 5.0 MP (USB 3.0); 45 fps @ 1.3 MP (USB 3.0); 15 fps @ 1.3 MP (USB 2.0)
• Magnification: 700x–900x
• Working distance: ~5.57–5.82 mm (depending on magnification)
• Field of view (X x Y): approx. 0.434–0.558 mm (X) × 0.326–0.419 mm (Y)
• Depth of field: approx. 0.00915–0.00985 mm
• Illumination: 8 white LEDs, eFLC supported
• Special functions: EDOF, EDR, DPQ (Windows), AMR, click-to-focus
• Interface: USB 3.0 (cable included)
• Housing: Metal
• Dimensions & weight: 11.9 cm × 3.3 cm; 110 g
• Software compatibility: DinoCapture (Windows), DinoXcope (Mac)
• Measurement & calibration: supported
