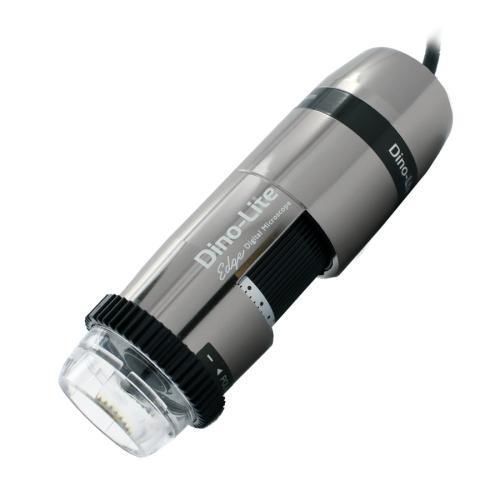

Digital video microscope AM7915MZTL - EDGE

inspectionpolarizingLED

Overview
The AM7915MZTL belongs to the Long Working Distance (LWD) series. With a long working distance and a magnification range of 10–140x, it is designed for applications requiring extra distance to the target or a larger field of view. The unit integrates a 5 Megapixel Edge sensor, an adjustable built-in polarizer and advanced image enhancement functions including EDOF, EDR, AMR and FLC.

Main features

• 5 Megapixel Edge sensor
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• 10–140x magnification
• Long working distance
• Automatic Magnification Reading (AMR)
• Adjustable linear polarizer
• Flexible LED Control (FLC)
• Measurement and calibration functions
• Metal housing, ESD safe

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 234.5 | 39.0 | 29.2 | 12.0
20 | 112.5 | 19.5 | 14.6 | 4.5
30 | 72.5 | 13.0 | 9.7 | 3.1
40 | 54.5 | 9.8 | 7.3 | 1.8
50 | 43.5 | 7.8 | 5.8 | 1.2
60 | 37.5 | 6.5 | 4.8 | 0.9
70 | 33.7 | 5.6 | 4.2 | 0.6
80 | 31.3 | 4.9 | 3.6 | 0.5
90 | 29.9 | 4.3 | 3.2 | 0.37
100 | 29.2 | 3.9 | 2.9 | 0.28
110 | 29.1 | 3.5 | 2.6 | 0.22
120 | 29.3 | 3.3 | 2.4 | 0.17
130 | 29.8 | 3.0 | 2.2 | 0.12
140 | 30.5 | 2.8 | 2.1 | 0.09
Unit = mm

Notes
EDOF and EDR functions are available under Windows OS only. The built-in polarizer reduces reflections when inspecting shiny or reflective materials such as metal, plastic, glass, jewelry and electronic components.

Technical specifications

• Light / LED type: White
• Number of LEDs: 8
• LED on/off switchable: Yes
• Infrared filter: IR cut-filter >650 nm
• Diffuser: Yes (N3C-D included)
• Emission filter: No
• Polarizer: Yes, linear (adjustable)
• Magnification: 10x ~ 140x
• Macro zoom: No
• Working distance: Long
• Lens type: Glass with anti-reflection coating
• Sensor type: CMOS
• Resolution: 5.0 Megapixel (2592x1944)
• Maximum frame rate: 30 fps
• Interface: USB 2.0
• Operating systems: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV (max 1.3MP)
• Imaging standards: DirectShow, UVC
• WiFi: Wireless-ready (requires WF-10 WiFi streamer, optional)
• Housing material: Metal housing
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 137 g
• Cable length: 1.8 m
• Special features: Automatic Magnification Reading (AMR), Extended Dynamic Range (EDR), Extended Depth of Field (EDOF), Flexible LED Control (FLC)
• Measurement: Yes
• Calibration: Yes
• Microtouch sensor: Yes
• ESD safe: Yes
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-C (Close Cap), N3C-D (Diffuser Cap), N3C-D2 (Opal Diffuser Cap), N3C-E (Extended Open Cap), N3C-L (Long Cap), N3C-O (Open Cap), N3C-S (Sidelight Cap)
• Warranty: 2 years European warranty
• Regulatory approval: CE, FCC, ROHS
• Price range (indicative): €1100.00 - €1300.00
