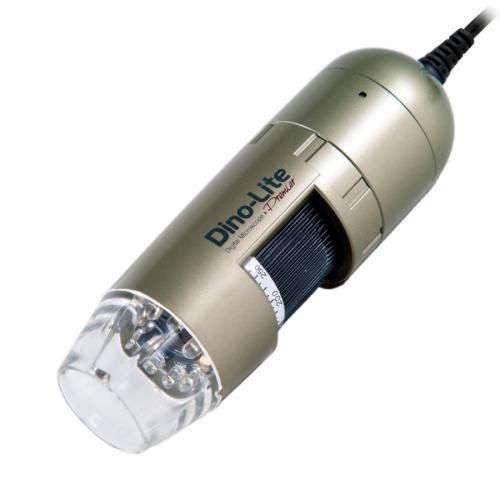

Digital video microscope AM4113T

inspectionlaboratoryeducation

Product description
The Dino-Lite AM4113T is a professional handheld digital microscope offering high-quality imaging with optical magnification up to 200x. Compact and easy to operate, it is suited for quality inspection, education, office and laboratory applications.

Overview

• 1.3 Megapixel CMOS sensor (1280x1024) with natural colour reproduction.
• Optical magnification range: 20x–50x; selectable 200x.
• Includes DinoCapture 2.0 (Windows) and DinoXcope (MacOS) for calibrated measurements.
• Designed for industrial inspection, education and laboratory use.

Key features

• LED illumination: white light, 8 LEDs; LED on/off switchable.
• Infrared cut filter: >650 nm.
• Lens: glass with anti-reflection coating.
• Magnification lock and Microtouch sensor.
• Measurement and calibration supported via software.
• Interface: USB 2.0 (DirectShow, UVC compliant).
• Maximum frame rate: 30 fps.
• Supported OS: Windows 7/8/10/11, MacOS 10.9 and up.
• Wireless-ready with optional WF-10 WiFi streamer.

Package contents

• Microscope
• Carry pouch
• Software CD
• Calibration target
• User manual

Other information

• Housing material: composite / plastic.
• Dimensions: 10.5 cm (L) x 3.2 cm (D).
• Weight: 105 g.
• Cable length: 1.8 m.
• Warranty: 2 years European warranty.
• Regulatory approvals: CE, FCC, ROHS.
• Price range indicated: €300.00 - €450.00.

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20 | 48.7 | 19.6 | 15.6 | 3.6
30 | 21.7 | 13.0 | 10.4 | 1.9
40 | 9.0 | 9.8 | 7.8 |
50 | 1.9 | 7.8 | 6.3 | 0.88
60 | -2.3 | 6.5 | 5.2 |
220 | -0.1 | 1.8 | 1.4 | 0.2
230 | 1.0 | 1.7 | 1.4 |
240 | 2.1 | 1.6 | 1.3 |
Listed values may differ slightly
Unit = mm

Specifications (condensed)

• Lighting: white LED, 8 LEDs, switchable.
• Optics: Magnification 20x–50x, 200x; lens: glass with anti-reflection coating.
• Sensor: CMOS, 1.3 Megapixel (1280x1024), up to 30 fps.
• Interface: USB 2.0; imaging standards DirectShow, UVC.
• Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS).
• Compatibility: Windows 7/8/10/11, MacOS 10.9+.
• Wireless-ready (WF-10 optional).
• Package: microscope, carry pouch, software CD, calibration target, user manual.
• Model: AM4113T — Brand: Dino-Lite.
