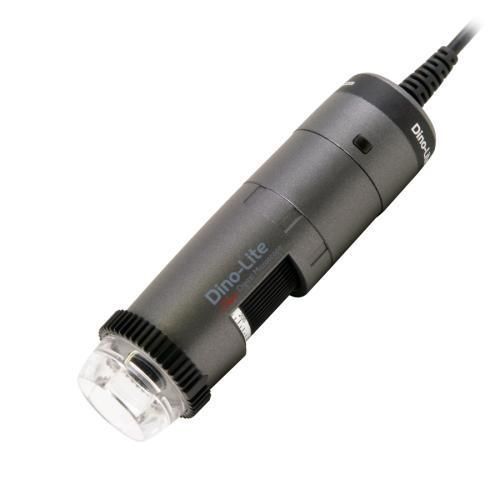

Digital video microscope AM4515ZTL - EDGE

inspectionpolarizedhand-held

Product overview
The Dino-Lite Edge AM4515ZTL digital microscope provides high image quality and operational flexibility through an adaptable cap system and a built-in adjustable polarizer. Automatic Magnification Reading (AMR) enables fast, accurate measurements and on-site calibration. Exchangeable caps and a long working distance up to 23 cm make this model suitable for PCB inspection, component assembly and other miniature real-time inspection tasks.

Product code
AM4515ZTL

Key features

• Automatic Magnification Reading (AMR) for easy measurement and calibration
• Built-in adjustable polarizer to reduce glare on shiny surfaces
• Long working distance (up to 23 cm) for PCB and real-time inspection
• Multiple exchangeable caps supplied (N3C-O, N3C-C, N3C-D, N3C-E, N3C-L, N3C-S)
• Microtouch sensor and magnification lock included
• USB 2.0 interface and wide software compatibility

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
* Without front cap (Unit = mm)
10 | 234.5 | 39.0 | 31.2 | 12
20 | 112.5 | 19.5 | 15.6 | 4.5
30 | 72.5 | 13.0 | 10.4 | 3.1
40 | 54.5 | 9.8 | 7.8 | 1.8
50 | 43.5 | 7.8 | 6.2 | 1.2
60 | 37.5 | 6.5 | 5.2 | 0.9
70 | 33.7 | 5.6 | 4.5 | 0.6
80 | 31.3 | 4.9 | 3.9 | 0.5
90 | 29.9 | 4.3 | 3.5 | 0.37
100 | 29.2 | 3.9 | 3.1 | 0.28
110 | 29.1 | 3.5 | 2.8 | 0.22
120 | 29.3 | 3.3 | 2.6 | 0.17
130 | 29.8 | 3.0 | 2.4 | 0.12
140 | 30.5 | 2.8 | 2.2 | 0.09

Specification
Lighting

• Light / LED type: White
• Number of LEDs: 8 (on/off switchable)
• Infrared filter: IR cut-filter >650 nm
• Diffuser: Yes (N3C-D included)
• Polarizer: Yes, linear and adjustable

Optics

• Magnification: 10x ~ 140x
• Macro zoom: No
• Working distance: Long (see optical table; up to 23 cm without front cap)
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 1.3 Megapixel (1280x1024)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0
• Operating systems: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Imaging standards: DirectShow, UVC
• WiFi: Wireless-ready via WF-10 streamer (optional)

Housing

• Housing material: Composite / plastic
• Magnification lock: Yes
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 105 g
• Cable length: 1.8 m

Features

• Special feature: Automatic Magnification Reading (AMR)
• Measurement & calibration: Yes
• Microtouch sensor: Yes
• ESD safe: No

Information

• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O (Open cap), N3C-C (Closed cap), N3C-D (Diffuser cap), N3C-E (Extension cap), N3C-L (Long cap), N3C-S (Side light cap)
• Warranty: 2 years European warranty
• Regulatory approval: CE, FCC, ROHS
• Price range: €600,00 - €800,00
