Digital video microscope AF4515ZT

inspectionpolarizingportable

Product overview

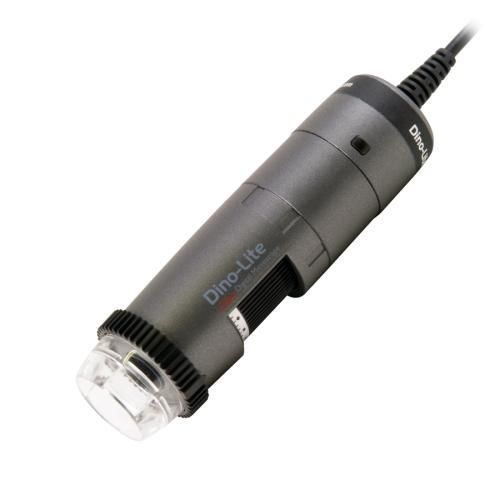

The Dino-Lite AF4515ZT is a portable digital microscope for inspection, documentation and measurement. It connects via USB 2.0 and is wireless-ready when used with the optional WF-20 adapter.

Main features

• 20x–220x magnification range
• 1.3 Megapixel CMOS sensor (1280x1024) — up to 30 fps
• Adjustable linear polarizer to reduce glare
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC) with 8 white LEDs
• Extensive measurement and calibration functions; Microtouch sensor
• Includes diffuser and multiple caps/extensions for varied working conditions

Optical data table
MAGNIFICATION RATE - WORKING DISTANCE* (mm) - FIELD OF VIEW (X) (mm) - FIELD OF VIEW (Y) (mm) - DEPTH OF FIELD (mm)
20 - 60.2 - 19.5 - 15.6 - 2.5
30 - 33.5 - 13 - 10.4 - 1.8
40 - 20.9 - 9.8 - 7.8 - 1.5
50 - 13.9 - 7.8 - 6.3 - (not listed)
60 - 9.7 - 6.5 - 5.2 - (not listed)
70 - 7.1 - 5.6 - 4.5 - 1.0
80 - 5.5 - 4.9 - 3.9 - (not listed)
90 - 4.5 - 4.3 - 3.5 - (not listed)
100 - 4.1 - 3.9 - 3.1 - (not listed)
110 - 4.0 - 3.6 - 2.8 - (not listed)
120 - 4.1 - 3.3 - 2.6 - (not listed)
130 - 4.5 - 3.0 - 2.4 - (not listed)
140 - 5.0 - 2.8 - 2.2 - (not listed)
150 - 5.6 - 2.6 - 2.1 - (not listed)
160 - 6.3 - 2.4 - 2.0 - (not listed)
170 - 7.1 - 2.3 - 1.8 - (not listed)
180 - 8.0 - 2.2 - 1.7 - (not listed)
190 - 8.9 - 2.1 - 1.6 - (not listed)
200 - 9.9 - 2.0 - 1.6 - (not listed)
210 - 10.9 - 1.9 - 1.5 - (not listed)
220 - 11.9 - 1.8 - 1.4 - 0.1

Lighting

• White LEDs, 8 total; LED on/off switchable
• Diffuser included (N3C-D)
• IR cut-filter >650 nm

Optics

• Magnification: 20x–220x
• Lens: glass with anti-reflection coating
• Working distance: see optical data table (values without front cap)

Sensor

• CMOS sensor, 1.3 Megapixel (1280x1024)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0 (DirectShow, UVC)
• Operating systems: Windows 7, 8, 10 & 11; macOS 10.12 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported image/video formats: Windows and macOS common formats (JPEG, PNG, BMP, WMV, MOV, etc.)
• WiFi: wireless-ready with optional WF-20 adapter

Housing & dimensions

• Composite/plastic housing
• Dimensions: 114 mm (L) x 33 mm (D)
• Weight: 111 g
• Cable length: 1.8 m

Features & measurement

• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC)
• Measurement functionality and calibration included
• Microtouch sensor

Package contents

• AF4515ZT microscope
• Carry pouch, software CD, calibration target, user manual
• Caps/extensions: N3C-O (open), N3C-C (closed), N3C-D (diffuser), N3C-E (extension), N3C-L (long), N3C-S (side light)

Notes
Listed values may differ slightly. *Working distance values are shown without front cap. Wireless operation requires the optional WF-20 adapter. Imaging standards: DirectShow, UVC.
