Digital video microscope AM5218MZTL Edge

inspectionpolarizedhand-held

Product overview

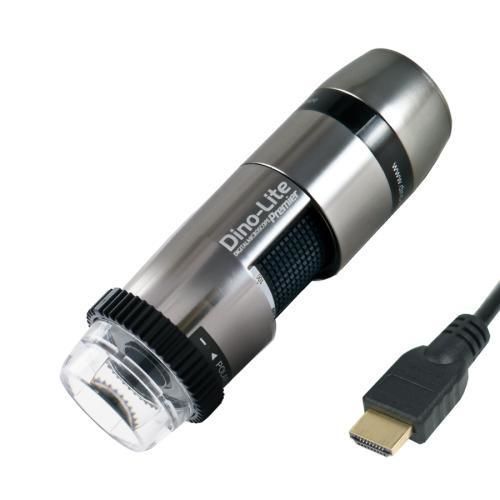

The Dino-Lite AM5218MZTL Edge is a direct-output digital inspection microscope that connects to HDTVs and LCD monitors via DVI/HDMI. It delivers HD 720p resolution and up to 60 fps for clear real-time imaging of small and reflective components.

Use & handling
With a long working distance (up to 150 mm) and a magnification range of 10×–140×, the AM5218MZTL Edge is suited to PCB inspection, electronics assembly, quality control and other precision inspection tasks. The Microtouch sensor freezes live images for detailed inspection; a 2-second press toggles the LEDs. The built-in adjustable linear polarizer reduces glare on shiny surfaces (metal, electronic components, plastics). The aluminium housing provides ESD-safe protection and durability for industrial use.

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 234.5 | 39 | 23.4 | 12
20 | 112.5 | 19.5 | 11.7 | 4.5
30 | 72.5 | 13 | 7.8 | 3.1
40 | 54.5 | 9.8 | 5.9 | 1.8
50 | 43.5 | 7.8 | 4.7 | 1.2
60 | 37.5 | 6.5 | 3.9 | 0.9
70 | 33.7 | 5.6 | 3.4 | 0.6
80 | 31.3 | 4.9 | 3.0 | 0.5
90 | 29.9 | 4.3 | 2.6 | 0.37
100 | 29.2 | 3.9 | 2.3 | 0.28
110 | 29.1 | 3.5 | 2.1 | 0.22
120 | 29.3 | 3.3 | 2.0 | 0.17
130 | 29.8 | 3.0 | 1.8 | 0.12
140 | 30.5 | 2.8 | 1.7 | 0.09
Unit = mm

Specification (summary)

• Lighting: 8 white LEDs, LED on/off switchable; IR cut-filter >650 nm; emission filter: No; polarizer: built-in adjustable linear polarizer.
• Optics: Magnification 10×–140×; macro zoom: No; working distance: long (up to 150 mm); lens: glass with anti-reflection coating.
• Sensor: CMOS; resolution: HD 720p; maximum frame rate: 60 fps.
• Compatibility / Interface: DVI & HDMI direct digital output; Wi‑Fi: No.
• Housing: Metal (aluminium), ESD safe; magnification lock: Yes; dimensions: 10.5 cm (L) x 3.2 cm (D); weight: 125 g; cable length: 1.8 m.
• Features: Microtouch sensor (image freeze; LED on/off with 2 s press); magnification lock; ESD safe.
• Package contents: Microscope, carry pouch, DVI & HDMI cable, power adapter, user manual, N3C series caps (Open/Closed/Diffuser/Extension/Long/Side light).
• Warranty & approvals: 2 years (Europe); CE, FCC, RoHS.

Technical specifications

• Model: AM5218MZTL Edge
• Brand: Dino-Lite
• Interface: DVI & HDMI (direct digital connection to HDTV / LCD monitors)
• Sensor type: CMOS
• Resolution: HD 720p
• Max frame rate: 60 fps
• Magnification range: 10× – 140×
• Working distance: up to 150 mm (long)
• Number of LEDs: 8 (white), switchable
• Polarizer: built-in adjustable linear polarizer
• Housing material: Metal (aluminium)
• Microtouch sensor: Yes (image freeze; LED on/off with 2 s press)
• ESD safe: Yes
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 125 g
• Cable length: 1.8 m
• Package: multiple caps and accessories as listed above
• Warranty: 2 years (Europe)
