Digital video microscope AF4115ZTL

inspectionpolarizinghand-held

Overview

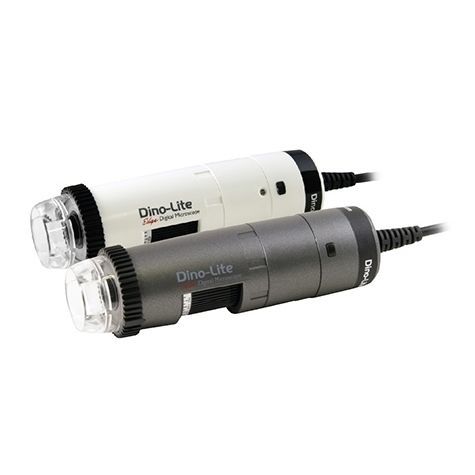

• The Dino-Lite AF4115ZTL is a USB digital microscope designed for inspections that require an extended working distance (LWD). It supports wireless operation when paired with the optional WF-20 Wi‑Fi streamer.
• Suitable for assembly, repair and quality control tasks where extra clearance between the lens and the target is needed.
• Also available in white finish.

Key features

• 1.3 Megapixel CMOS sensor with MJPEG compression — supports up to 1280x1024 resolution at up to 30 fps.
• Long Working Distance (LWD) optics — provides increased space between object and microscope for tooling and handling.
• Adjustable polarizer — reduces glare and reflections for improved contrast on shiny surfaces.
• Flexible LED Control (FLC) — four LED quadrants with independent on/off and 6-level intensity adjustment.
• Wireless-ready — attach the WF-20 Wi‑Fi streamer to enable wireless streaming to mobile devices.
• Measurement and calibration functions included; Microtouch sensor for capture control.

Working distance and field of view
M / WD / FOV (x) / FOV (y) / DOF
10 / 234.5 / 39.0 / 31.2 / 12
20 / 112.5 / 19.5 / 15.6 / 4.5
30 / 72.5 / 13.0 / 10.4 / 3.1
40 / 54.5 / 9.8 / 7.8 / 1.8
50 / 43.5 / 7.8 / 6.2 / 1.2
60 / 37.5 / 6.5 / 5.2 / 0.9
70 / 33.7 / 5.6 / 4.5 / 0.6
80 / 31.3 / 4.9 / 3.9 / 0.5
90 / 29.9 / 4.3 / 3.5 / 0.37
100 / 29.2 / 3.9 / 3.1 / 0.28
110 / 29.1 / 3.5 / 2.8 / 0.22
120 / 29.3 / 3.3 / 2.6 / 0.17
130 / 29.8 / 3.0 / 2.4 / 0.12
140 / 30.5 / 2.8 / 2.2 / 0.09

Technical specifications

• Model: AF4115ZTL
• Brand: Dino-Lite
• Image sensor: 1.3 Megapixel CMOS (MJPEG)
• Optics: Long Working Distance (LWD)
• Polarizer: Built-in adjustable polarizer
• Illumination: Flexible LED Control (4 quadrants, 6 intensity levels)
• Interface: USB 2.0; WF-20 Wi‑Fi streamer (optional) for wireless connection
• Resolution: up to 1280x1024; Max frame rate: 30 fps
• Lens: glass with anti-reflection coating
• LEDs: 8 white LEDs (individually switchable by quadrant)
• Measurement: calibration and measurement tools included
• Housing: composite / plastic; Dimensions: 11.4 cm (L) x 3.3 cm (D); Weight: 111 g
• Cable length: 1.8 m
• Operating systems: Windows 7/8/10/11, MacOS 10.12+
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Imaging standards: DirectShow, UVC
• Certifications: CE, FCC, ROHS; Warranty: 2 years (Europe)
• Package contents: microscope, carry pouch, software CD, calibration target, manual, N3C caps (O, C, D, E, L, S)
• Availability: also available in white; Price range (excl. VAT): €500.00 - €600.00
