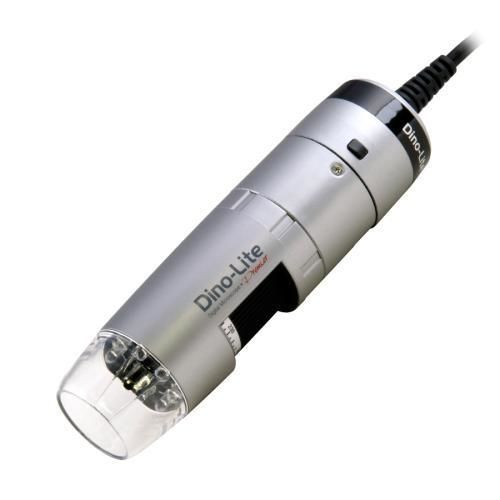

Digital video microscope AF3113T

inspectionhand-heldportable

Product overview
The Dino-Lite AF3113T is a USB digital microscope for industrial and scientific inspection with integrated measurement and a Microtouch capture button. The improved image sensor delivers natural colours and up to 30 fps for responsive real-time imaging. Suitable for inspection, quality control and documentation workflows.

Optical data table
20x | 51.7 mm | 21.0 mm | 15.7 mm | 8 mm
30x | 24.1 mm | 14.0 mm | 10.5 mm | 4 mm
40x | 11.0 mm | 10.5 mm | 7.9 mm | 2.5 mm
50x | 3.8 mm | 8.4 mm | 6.3 mm | 2 mm
60x | -0.6 mm | 7.0 mm | 5.2 mm | -
200x | -0.4 mm | 2.1 mm | 1.6 mm | 0.45 mm
210x | 0.6 mm | 2.0 mm | 1.5 mm | -
220x | 1.7 mm | 1.9 mm | 1.4 mm | -
230x | 2.8 mm | 1.8 mm | 1.4 mm | 0.42 mm

Lighting

• Light / LED type: White
• Number of LEDs: 8
• LED on/off switchable: Yes
• Infrared filter: IR cut-filter >650 nm
• Diffuser available: No
• Emission filter: No
• Polarizer: No

Optics

• Magnification: 20x ~ 55x, 220x
• Macro zoom: No
• Working distance: Standard
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: VGA (640x480)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0
• Operating system: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV
• Imaging standards: DirectShow, UVC
• WiFi: Wireless-ready, requires the WF-20 adapter (optional)

Housing

• Housing material: Composite / plastic housing
• Magnification lock: No
• Dimensions: 11.5 cm (L) x 3.2 cm (D)
• Weight: 105 g
• Cable length: 1.8 m

Features

• Measurement: Yes (integrated)
• Calibration: Yes
• Microtouch sensor: Yes
• Special feature: —
• ESD safe: No

Information

• Package contents: Microscope, carry pouch, software CD, calibration target, user manual
• Warranty: 2 years (European)
• Regulatory approval: CE, FCC, ROHS
• Price range: €150,00 - €350,00

Technical specifications

• Model: AF3113T
• Brand: Dino-Lite
• Interface: USB 2.0; wireless-ready with optional WF-20 adapter
• Sensor: CMOS, VGA 640x480, up to 30 fps
• Magnification ranges: 20x–55x and 220x
• Illumination: 8 white LEDs, switchable; IR cut-filter >650 nm
• Lens: Glass with anti-reflection coating
• Dimensions / Weight: 11.5 cm x 3.2 cm / 105 g; cable 1.8 m
• Functions: measurement, calibration, Microtouch capture
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
