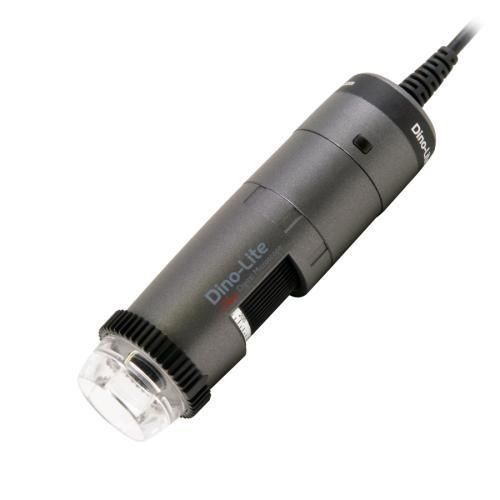

Digital video microscope AF4135ZTLE

inspectionhand-heldportable

Product overview
The Dino-Lite AF4135ZTLE is a USB-connected digital microscope from the Long Working Distance (LWD) series. It delivers 10x–200x magnification with a 1.3MP (1280x1024) CMOS sensor and is wireless-ready with the optional WF-20 adapter.

Main features

• 10x–200x magnification range
• 1.3 Megapixel EDGE CMOS sensor (1280x1024)
• Long working distance optical design
• Integrated linear polarizer for anti-reflection
• Flexible LED Control (FLC) with 8 white LEDs, switchable
• Extensive measurement functions with calibration support
• Microtouch sensor and magnification lock
• Wireless-ready via optional WF-20 adapter

Optical data (excerpt)
Magnification Rate | Working Distance * | Field of View (x) | Field of View (y) | Depth of Field (Unit = mm)
10 | 355.8 | 39.1 | 29.3 | 55.2
20 | 173.0 | 19.5 | 14.7 | 14.5
30 | 113.1 | 13.0 | 9.8 | 6.7
40 | 83.8 | 9.8 | 7.3 | 3.9
50 | 66.8 | 7.8 | 5.9 | 2.6
60 | 55.9 | 6.5 | 4.9 | 1.9
70 | 48.6 | 5.6 | 4.2 | 1.5
80 | 43.4 | 4.9 | 3.7 | 1.2
90 | 39.8 | 4.3 | 3.3 | 1.0
100 | 37.1 | 3.9 | 2.9 | 0.8
110 | 35.2 | 3.6 | 2.7 | 0.7
120 | 33.8 | 3.3 | 2.4 | 0.6
130 | 32.9 | 3.0 | 2.3 | 0.5
140 | 32.3 | 2.8 | 2.1 | 0.5
150 | 32.0 | 2.6 | 2.0 | 0.4
160 | 31.8 | 2.4 | 1.8 | 0.4
170 | 31.9 | 2.3 | 1.7 | 0.4
180 | 32.1 | 2.2 | 1.6 | 0.3
190 | 32.5 | 2.1 | 1.5 | 0.3
200 | 33.0 | 2.0 | 1.5 | 0.3

Notes on optical data
Values are indicative and may vary slightly. * Without front cap. Unit = mm.

Technical specifications (selected)

• Brand: Dino-Lite
• Model: AF4135ZTLE
• Magnification: 10x–200x
• Sensor: CMOS, 1.3 MP (1280x1024), up to 30 fps
• Interface: USB 2.0 (DirectShow, UVC)
• Operating systems: Windows 7/8/10/11, macOS 10.14+
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Lighting: 8 x white LEDs, LED on/off switchable; diffuser (N3C-D included)
• IR filter: IR cut-filter >650 nm
• Polarizer: linear, integrated
• Lens: glass with anti-reflection coating
• Working distance: long working distance design
• Housing: composite/plastic
• Dimensions: 114 mm (L) x 33 mm (Ø)
• Weight: 111 g
• Cable length: 1.8 m
• Special features: Flexible LED Control (FLC), measurement and calibration, microtouch sensor, magnification lock
• ESD safe: No
• Package contents: microscope, carry pouch, software CD, calibration target, user manual, N3C caps (Open, Closed, Diffuser, Extension, Long, Side light)
• Warranty: 2 years (Europe)
• Certifications: CE, FCC, ROHS
• Price range (indicative): €550.00 - €750.00
