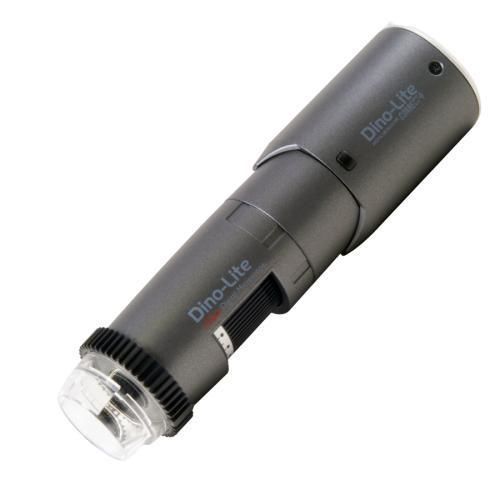

Digital video microscope WF4915ZTL

inspectionpolarizedhand-held

Product overview
The Dino-Lite WF4915ZTL is a portable digital inspection microscope from the Long Working Distance (LWD) series offering wired (USB) and fully wireless operation via the attachable WF-20 adapter.

Main features

• Switchable wired (USB 2.0) and wireless (WF-20) operation — complete wireless solution when WF-20 is included
• Magnification range: 10×–140×
• 1.3 MP CMOS sensor (1280×1024) — up to 30 fps
• Extended Depth of Field (EDOF) and Extended Dynamic Range (EDR)
• Automatic Magnification Reading (AMR) for calibrated measurements
• Adjustable linear polarizer and Flexible LED Control (FLC)
• Multiple measurement and calibration functions; microtouch sensor

Note: EDOF and EDR functions are available only under Windows OS.

Optical data table
Unit = mm
Magnification — Working Distance* — Field of View (x) — Field of View (y) — Depth of Field
10 | 234.5 | 39.0 | 31.2 | 12
20 | 112.5 | 19.5 | 15.6 | 4.5
30 | 72.5 | 13.0 | 10.4 | 3.1
40 | 54.5 | 9.8 | 7.8 | 1.8
50 | 43.5 | 7.8 | 6.2 | 1.2
60 | 37.5 | 6.5 | 5.2 | 0.9
70 | 33.7 | 5.6 | 4.5 | 0.6
80 | 31.3 | 4.9 | 3.9 | 0.5
90 | 29.9 | 4.3 | 3.5 | 0.37
100 | 29.2 | 3.9 | 3.1 | 0.28
110 | 29.1 | 3.5 | 2.8 | 0.22
120 | 29.3 | 3.3 | 2.6 | 0.17
130 | 29.8 | 3.0 | 2.4 | 0.12
140 | 30.5 | 2.8 | 2.2 | 0.09

Specifications (key)

• Lighting: 8 white LEDs; LED on/off switchable; diffuser (N3C-D) included; IR cut-filter >650 nm
• Optics: Magnification 10×–140×; glass lens with anti-reflection coating; long working distance
• Sensor: CMOS 1.3 MP (1280×1024), max 30 fps
• Interface & compatibility: USB 2.0; WiFi via WF-20; Windows 7/8/10/11 (full features), macOS 10.11.6+ (cable mode only)
• Housing & dimensions: Composite/plastic housing; 114 mm × Ø33 mm; weight 111 g; cable length 1.8 m
• Features: EDOF, EDR, AMR, FLC, measurement & calibration, microtouch sensor; magnification lock
• Package contents: Microscope, WF-20, carry pouch, software CD, calibration target, user manual, N3C caps (O, C, D, E, L, S)
• Regulatory & warranty: CE, FCC, ROHS, UKCA; 2-year European warranty
• Indicative price range: €1100.00 - €1300.00
