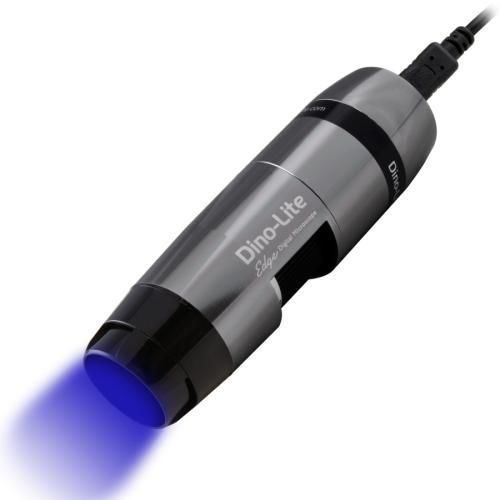

Digital video microscope AM7115MT-FUW

inspectionfor materials researchfluorescence

Product overview
The Dino-Lite AM7115MT-FUW is a USB digital inspection microscope with switchable white and near-UV illumination (peak ~375 nm). It integrates a 5.0 MP Edge sensor (2592 x 1944), a wide 20–220x magnification range and exchangeable front caps for varied working conditions. Suited for visual inspection, material analysis, quality control and fluorescence/UV examination.

Main features

• 5.0 Megapixel Edge sensor (2592 x 1944)
• USB 2.0 interface
• Magnification range: 20x – 220x
• Metal housing
• Flexible LED Control (FLC) — switchable white / near-UV
• Near UV LEDs with peak ~375 nm (4 UV + 4 white LEDs)
• Extensive measurement functions and calibration support
• Exchangeable front caps included

Optical data
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD (Unit = mm)
20 | 60.2 | 19.5 | 14.6 | 2.5
30 | 33.5 | 13.0 | 9.7 | 1.8
40 | 20.9 | 9.8 | 7.3 | 1.5
50 | 13.9 | 7.8 | 7.8 | -
60 | 9.7 | 6.5 | 5.8 | -
70 | 7.1 | 5.6 | 4.2 | 1.0
80 | 5.5 | 4.9 | 3.6 | -
90 | 4.5 | 4.3 | 3.2 | -
100 | 4.1 | 3.9 | 2.9 | -
110 | 4.0 | 3.6 | 2.7 | -
120 | 4.1 | 3.3 | 2.4 | -
130 | 4.5 | 3.0 | 2.2 | -
140 | 5.0 | 2.8 | 2.1 | -
150 | 5.6 | 2.6 | 1.9 | -
160 | 6.3 | 2.4 | 1.8 | -
170 | 7.1 | 2.3 | 1.7 | -
180 | 8.0 | 2.2 | 1.6 | -
190 | 8.9 | 2.1 | 1.5 | -
200 | 9.9 | 2.0 | 1.5 | -
210 | 10.9 | 1.9 | 1.4 | -
220 | 11.9 | 1.8 | 1.3 | -

Lighting

• LED types: near-UV (~375 nm) + white
• Number of LEDs: 4 UV + 4 white
• LED on/off switchable: Yes
• Infrared filter: IR cut-filter > 650 nm
• Diffuser: Yes (N3C-D included)
• Emission filter: Emission barrier filter 375 nm
• Polarizer: No

Optics

• Magnification: 20x – 220x
• Macro zoom: No
• Working distance: Standard
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 5.0 Megapixel (2592 x 1944)
• Maximum frame rate: 30 fps

Compatibility & Software

• Interface: USB 2.0
• Operating systems: Windows 7, 8, 10 & 11; macOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (macOS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (macOS): JPEG, PNG
• Supported video formats (macOS): MOV (max. 1.3MP)
• Imaging standards: DirectShow, UVC

Housing & Physical

• Housing material: Metal
• Magnification lock: Yes
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 140 g
• Cable length: 1.8 m

Features

• Measurement functions: Yes (extensive)
• Calibration: Supported (calibration target included)
• Microtouch sensor: Yes
• ESD safe: Yes
• Special feature: Switchable UV illumination

Package & Compliance

• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-C (Close Cap), N3C-EB (Extended Open Black Cap), N3C-L (Long Cap), N3C-OB (Black Open Cap), N3C-S (Sidelight Cap)
• Warranty: 2 years (European warranty)
• Regulatory approvals: CE, FCC, ROHS
• Price range (informative): EUR 900.00 - 1,100.00

Technical specifications

• Model: AM7115MT-FUW
• Brand: Dino-Lite
• Magnification: 20x – 220x
• Sensor: 5.0 MP (2592 x 1944), CMOS
• Interface: USB 2.0
• UV LED peak: ~375 nm (4 UV + 4 white LEDs)
• Housing: Metal
• Dimensions: 10.5 cm x 3.2 cm
• Weight: 140 g
• Cable: 1.8 m
• Functions: Measurement, Calibration, Microtouch sensor, ESD safe
• Package: See package contents above
• Warranty: 2 years (Europe)
• Regulatory approvals: CE, FCC, ROHS
• Price range: EUR 900.00 - 1,100.00
