Digital video microscope AM8117MZTL

inspectionpolarizedpolarizing

Overview

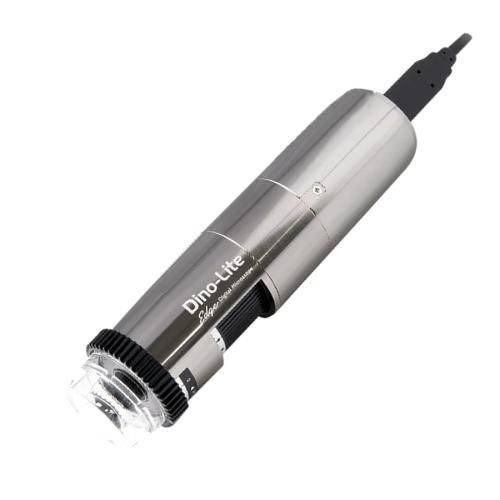

The AM8117MZTL is an 8.0 MP digital microscope with long working distance optics designed for industrial inspection, metrology and documentation. It combines a high-resolution CMOS sensor, eFLC LED control and an adjustable polarizer to capture clear images across a wide magnification range.

Main features

• 8.0 Megapixel CMOS sensor (3840 x 2160)
• High optical resolution with 10x–140x magnification
• Enhanced Flexible LED Control (eFLC) with 8 white LEDs
• Long Working Distance (LWD) optics: 238.3 mm → 33.5 mm
• Adjustable polarizer for contrast control on reflective samples
• Auto and manual refocus
• Integrated measurement and calibration functions; microtouch sensor
• Robust metal housing; compact form factor (130 mm x 33 mm)

Optical data table (unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 238.3 | 60.69 | 34.14 | 25.99
20 | 115.4 | 30.35 | 17.07 | 6.94
30 | 75.9 | 20.23 | 11.38 | 3.29
40 | 57.1 | 15.17 | 8.53 | 1.98
50 | 46.7 | 12.14 | 6.83 | 1.35
60 | 40.5 | 10.11 | 5.69 | 0.99
70 | 36.7 | 8.67 | 4.88 | 0.77
80 | 34.3 | 7.59 | 4.27 | 0.62
90 | 32.9 | 6.74 | 3.79 | 0.52
100 | 32.3 | 6.07 | 3.41 | 0.44
110 | 32.1 | 5.52 | 3.10 | 0.38
120 | 32.3 | 5.06 | 2.85 | 0.33
130 | 32.8 | 4.67 | 2.63 | 0.30
140 | 33.5 | 4.34 | 2.44 | 0.27

Notes
Listed values may differ slightly. * Without front cap.

Technical specifications

• Lighting / LED type: White; Number of LEDs: 8; eFLC
• Magnification: 10x ~ 140x
• Working distance: 238.3 ~ 33.5 mm
• Sensor type: CMOS; Resolution: 8.0 MP (3840 x 2160)
• Maximum frame rate: 10 fps at 8.0 MP (MJPEG); 25 fps at 2.0 MP (MJPEG)
• Interface: USB 2.0; Operating system: Windows 10/11
• Supported image formats (Windows): BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
• Supported video formats (Windows): WMV, FLV, SWF
• Housing material: Metal; Dimensions: 130 mm (H) x 33 mm (D); Weight: 120 g
• Special features: Auto and Manual Refocus; Measurement and Calibration; Microtouch sensor
• Package contents: N3C-C (Close Cap), N3C-D (Diffuser Cap), N3C-D2 (Opal Diffuser Cap), N3C-E (Extended Open Cap), N3C-L (Long Cap), N3C-O (Open Cap), N3C-S (Sidelight Cap)
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS
• Indicative price range: €1149,00 - €1349,00
