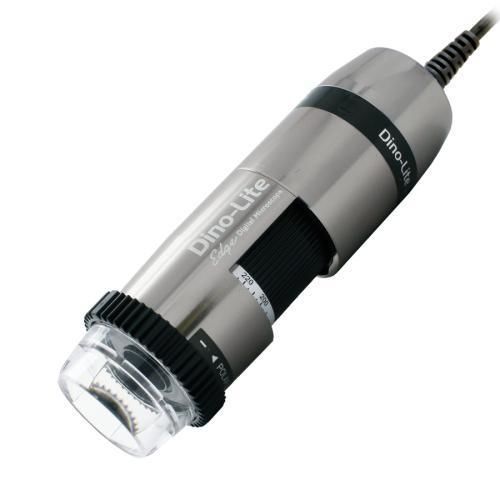

Digital video microscope AM7515MZT1P-APL

inspectionlaboratorypolarizing

Product description
Dino-Lite AM7515MZT1P-APL integrates an Aim Point Laser (APL) to simplify locating and focusing targets under the microscope. This 5MP digital microscope offers a 70–140x magnification range and includes Automatic Magnification Reading (AMR), Flexible LED Control (FLC), an integrated linear polarizer and a metal housing.

Applications
With its standard working distance and wide magnification range, the AM7515MZT1P-APL is suitable for inspections of shiny or reflective objects such as metal, plastic, glass, jewelry and electronic components, as well as laboratory and industrial visual inspection tasks. The built-in polarizer reduces glare; the AMR function supports frequent measurement workflows.

Aim Point Laser (APL)
The Aim Point Laser (APL) is an integrated through-lens laser that projects a red dot, providing a visual reference point for positioning and focusing the target.

Main features

• 5.0 Megapixel CMOS sensor (2592x1944)
• 70–140x magnification range
• Integrated linear polarizer
• Metal/aluminum housing
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC) with 8 white LEDs
• Aim Point Laser (APL), 656 nm
• Extensive measurement and calibration functions
• Exchangeable front caps (open, closed, diffuser, extension, long, side light)

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE 1 | WORKING DISTANCE 2* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD (Unit = mm)
Listed values may differ slightly
130 | - | 4.5 | 3.0 | 2.2 | -
140 | - | 5.0 | 2.8 | 2.1 | -
150 | - | 5.6 | 2.6 | 1.9 | -
160 | - | 6.3 | 2.4 | 1.8 | -
170 | - | 7.1 | 2.3 | 0.17 | -
180 | - | 8.0 | 2.2 | 1.6 | -
190 | - | 8.9 | 2.1 | 1.5 | -
200 | - | 9.9 | 2.0 | 1.5 | -
210 | - | 10.9 | 1.9 | 1.4 | -
220 | - | 11.9 | 1.8 | 1.3 | 0.1

Specification

• Lighting: White LEDs, 8 units, on/off switchable; IR cut-filter >650 nm; Diffuser included (N3C-D); Emission filter: No; Polarizer: linear; Laser pointer: 656 nm diode.
• Optics: Magnification 70x–140x; Macro zoom: No; Working distance: Standard; Lens: Glass with anti-reflection coating.
• Sensor: CMOS 5.0 MP (2592x1944); Maximum frame rate: 30 fps.
• Compatibility: Interface USB 2.0; OS: Windows 7/8/10/11, macOS 10.14+; Software: DinoCapture 2.0 (Windows), DinoXcope (Mac); Imaging standards: DirectShow, UVC; Wireless-ready with optional WF-10 streamer.
• Housing: Metal housing; Dimensions: 10.7 cm (L) x 3.2 cm (D); Weight: 140 g; Cable length: 1.8 m.
• Features: AMR, FLC, APL; Measurement and calibration functions; Microtouch sensor; ESD safe.
• Information: Package contents: microscope, carry pouch, software CD, calibration target, user manual, N3C front caps; Warranty: 2 years (Europe); Regulatory: CE, FCC, RoHS; Price range: €1000–€1200.

Technical specifications

• Product code: AM7515MZT1P
• Model: AM7515MZT1P-APL
• Resolution: 5.0 Megapixel (2592x1944)
• Magnification: 70x–140x
• Interface: USB 2.0
• LEDs: 8 white, switchable
• Laser: 656 nm Aim Point Laser (APL)
• Polarizer: Integrated linear polarizer
• Lens: Glass with anti-reflection coating
• Housing: Metal
• Dimensions: 10.7 cm x 3.2 cm
• Weight: 140 g
• Cable length: 1.8 m
• Measurement & Calibration: Yes
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Warranty: 2 years (EU)
• Regulatory: CE, FCC, RoHS
