Digital video microscope AF4535ZTLE

inspectionlaboratorypolarized

Product overview

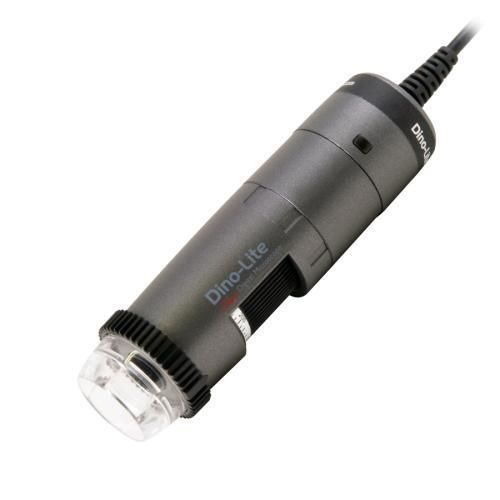

The Dino-Lite AF4535ZTLE is a long working distance (LWD) USB digital microscope featuring a 1.3 MP CMOS sensor and a wide magnification range of 10x–200x. It is wireless-ready with the optional WF-20 adapter. The instrument integrates an adjustable linear polarizer, Flexible LED Control (8 white LEDs) and multiple interchangeable caps for varied inspection tasks, making it suitable for industrial inspection, quality control and laboratory work.

Main features

• 1.3 Megapixel Edge CMOS sensor (1280 x 1024)
• Magnification range: 10x – 200x
• Adjustable linear polarizer for reflection control
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC) with 8 white LEDs; LED on/off switchable
• Extensive measurement functions and calibration support
• Wireless-ready (requires WF-20 adapter, optional)
• Includes multiple caps: open, closed, diffuser (N3C-D), extension, long cap and side light cap

Optical data table
Magnification Rate | Working Distance (mm) | Field of View (x) (mm) | Field of View (y) (mm) | Depth of Field (mm)
10 | 355.8 | 39.1 | 29.3 | 55.2
20 | 173.0 | 19.5 | 14.7 | 14.5
30 | 113.1 | 13.0 | 9.8 | 6.7
40 | 83.8 | 9.8 | 7.3 | 3.9
50 | 66.8 | 7.8 | 5.9 | 2.6
60 | 55.9 | 6.5 | 4.9 | 1.9
70 | 48.6 | 5.6 | 4.2 | 1.5
80 | 43.4 | 4.9 | 3.7 | 1.2
90 | 39.8 | 4.3 | 3.3 | 1.0
100 | 37.1 | 3.9 | 2.9 | 0.8
110 | 35.2 | 3.6 | 2.7 | 0.7
120 | 33.8 | 3.3 | 2.4 | 0.6
130 | 32.9 | 3.0 | 2.3 | 0.5
140 | 32.3 | 2.8 | 2.1 | 0.5
150 | 32.0 | 2.6 | 2.0 | 0.4
160 | 31.8 | 2.4 | 1.8 | 0.4
170 | 31.9 | 2.3 | 1.7 | 0.4
180 | 32.1 | 2.2 | 1.6 | 0.3
190 | 32.5 | 2.1 | 1.5 | 0.3
200 | 33.0 | 2.0 | 1.5 | 0.3

Specification summary

• Lighting: 8 white LEDs, LED on/off switchable, diffuser included (N3C-D), IR cut-filter >650 nm, no emission filter
• Optics: Magnification 10x–200x, glass lens with anti-reflection coating, long working distance
• Sensor: CMOS 1.3 MP (1280 x 1024), max 30 fps
• Interface & compatibility: USB 2.0; Windows 7/8/10/11 and macOS 10.14+; software DinoCapture 2.0 (Windows), DinoXcope (Mac); DirectShow, UVC standards
• Housing & dimensions: Composite/plastic housing, magnification lock, 114 mm (L) x 33 mm (D), weight 111 g, cable length 1.8 m
• Special features: AMR, FLC, measurement & calibration support, microtouch sensor
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O, N3C-C, N3C-D, N3C-E, N3C-L, N3C-S caps
• Warranty & approvals: 2 years European warranty; CE, FCC, RoHS
• Price range indicated: EUR 550.00 - EUR 750.00

Note
Connects via USB 2.0. Wireless operation requires the WF-20 adapter (sold separately).
