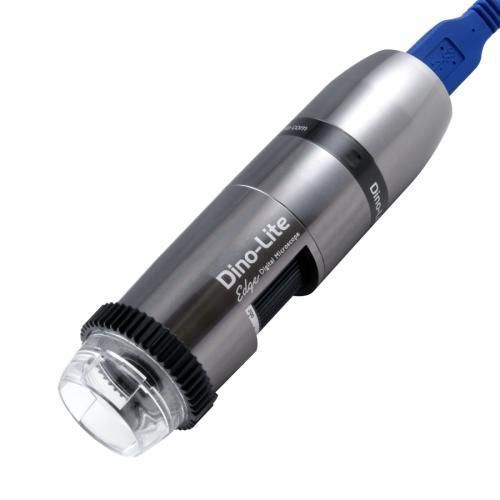

Digital video microscope AM73115MZT

inspectionlaboratorypolarized

Overview
Dino-Lite AM73115MZT is a USB 3.0 digital microscope engineered for industrial inspection and laboratory analysis. Edge-series optics, an integrated linear polarizer and Flexible LED Control (FLC) deliver uncompressed images with accurate color reproduction and adjustable illumination for reflective samples such as metal, plastic, glass, jewelry and electronic components.

Main features

• 5.0 MP Edge CMOS sensor (2560×1920)
• USB 3.0 interface, up to 45 fps (45 fps @1280×960; 15 fps @2560×1920)
• Magnification range 10–220×
• Integrated linear polarizer to reduce glare
• 8 white LEDs, LED on/off, diffuser included (N3C-D); Flexible LED Control (FLC)
• Aluminum metal housing with magnification lock
• Extensive measurement functions, calibration and microtouch sensor; ESD-safe
• Cable included (proprietary Dino-Lite USB 3.0 cable); compatible with Windows 7/8/10/11 and MacOS 10.9+
• Package: microscope, carry pouch, software CD, manual, calibration target and multiple front caps (N3C series)
• Warranty & compliance: 2 years (EU); CE, FCC, RoHS

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 142.4 | 37.8 | 28.3 | 19.7
20 | 59.5 | 19.5 | 14.6 | 5.4
30 | 32.9 | 13.0 | 9.7 | 2.6
40 | 20.2 | 9.8 | 7.3 | 1.6
50 | 13.2 | 7.8 | 5.8 | 1.1
60 | 9.0 | 6.5 | 4.8 | 0.8
70 | 6.4 | 5.6 | 4.2 | 0.6
80 | 4.8 | 4.9 | 3.6 | 0.5
90 | 3.9 | 4.3 | 3.2 | 0.42
100 | 3.5 | 3.9 | 2.9 | 0.36
110 | 3.3 | 3.6 | 2.7 | 0.31
120 | 3.5 | 3.3 | 2.4 | 0.27
130 | 3.8 | 3.0 | 2.2 | 0.24
140 | 4.3 | 2.8 | 2.1 | 0.22
150 | 4.9 | 2.6 | 1.9 | 0.20
160 | 5.6 | 2.4 | 1.8 | 0.18
170 | 6.4 | 2.3 | 1.7 | 0.17
180 | 7.3 | 2.2 | 1.6 | 0.15
190 | 8.2 | 2.1 | 1.5 | 0.14
200 | 9.2 | 2.0 | 1.5 | 0.13
210 | 10.2 | 1.9 | 1.4 | 0.13
220 | 11.3 | 1.8 | 1.3 | 0.12
Listed values may differ slightly | *Without front cap | Unit = mm

Specification (summary)

• Lighting: 8 white LEDs; LED on/off; IR cut-filter >650 nm; diffuser included (N3C-D); polarizer: linear
• Optics: Edge series; glass lens with anti-reflection coating; magnification 10×–220×
• Sensor: CMOS 5.0 MP (2560×1920); max frame rate 45 fps (max 20 fps video recording)
• Interface & compatibility: USB 3.0 (cable included); Windows 7/8/10/11, MacOS 10.9+; DirectShow, UVC; software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Housing: metal (aluminum); dimensions 119 mm (L) × 33 mm (H); weight 110 g; cable length 1.8 m
• Features: Flexible LED Control (FLC), measurement & calibration, magnification lock, microtouch sensor, ESD-safe
• Package contents & regulatory: multiple front caps (N3C series), carry pouch, software CD, manual; warranty 2 years (EU); CE, FCC, RoHS
• Indicative price range: €1000–€1200
