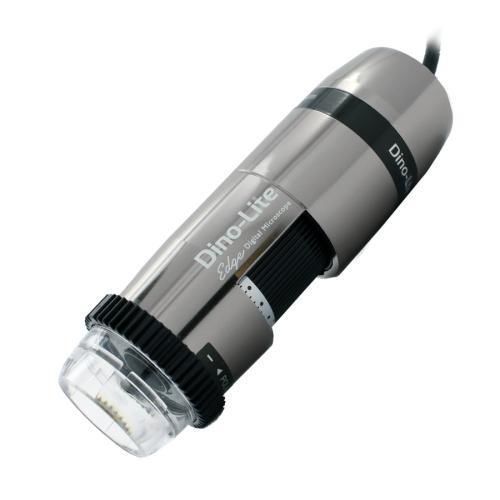

Digital video microscope AM7915MZTL - EDGE

inspectionpolarizedLED

Product overview
The AM7915MZTL is a USB digital microscope in the long working distance (LWD) family. With a 5.0 MP Edge sensor and a 10–140x magnification range it is designed for inspection, measurement and documentation where extra distance to the object or a larger field of view is required.

Key capabilities

• Built-in 5 megapixel Edge sensor
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• 10–140x magnification range
• Long working distance (LWD)
• Automatic Magnification Reading (AMR)
• Adjustable linear polarizer
• Flexible LED Control (FLC)

Notes on advanced functions
EDR (Extended Dynamic Range) reveals detail in darker and brighter areas by stacking images at different exposure levels. EDOF (Extended Depth of Field) increases depth of field on uneven surfaces by stacking images at different focus positions. AMR provides automatic magnification readout useful for frequent measurements. The adjustable polarizer reduces reflections on shiny materials such as metal, plastic, glass, jewelry and electronic components. (EDOF/EDR functions are available only on Windows OS)

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE* (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
10 | 234.5 | 39.0 | 29.2 | 12.0
20 | 112.5 | 19.5 | 14.6 | 4.5
30 | 72.5 | 13.0 | 9.7 | 3.1
40 | 54.5 | 9.8 | 7.3 | 1.8
50 | 43.5 | 7.8 | 5.8 | 1.2
60 | 37.5 | 6.5 | 4.8 | 0.9
70 | 33.7 | 5.6 | 4.2 | 0.6
80 | 31.3 | 4.9 | 3.6 | 0.5
90 | 29.9 | 4.3 | 3.2 | 0.37
100 | 29.2 | 3.9 | 2.9 | 0.28
110 | 29.1 | 3.5 | 2.6 | 0.22
120 | 29.3 | 3.3 | 2.4 | 0.17
130 | 29.8 | 3.0 | 2.2 | 0.12
140 | 30.5 | 2.8 | 2.1 | 0.09

Technical specifications

• Illumination: White LEDs (8), LED on/off switchable
• Infrared filter: IR cut-filter >650 nm
• Diffuser: Yes (N3C-D included)
• Polarizer: Adjustable linear polarizer
• Optics: Glass lens with anti-reflection coating; magnification 10x–140x; long working distance
• Sensor: CMOS, 5.0 Megapixel (2592 x 1944), up to 30 fps
• Interface: USB 2.0; wireless-ready with optional WF-10 streamer
• Compatibility: Windows 7/8/10/11; MacOS 10.9 and up; software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX; video: WMV, FLV, SWF
• Supported formats (Mac): JPEG, PNG; video: MOV (max 1.3MP)
• Standards: DirectShow, UVC
• Housing: Metal; dimensions: 10.5 cm (L) x 3.2 cm (D); weight: 137 g; cable: 1.8 m
• Special functions: AMR, EDR, EDOF, FLC; measurement and calibration supported; microtouch sensor; ESD safe
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C caps set (C, D, D2, E, L, O, S)
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, RoHS
• Indicative price range: €1100–€1300
