Digital video microscope AM4517MZTL

inspectionlaboratorypolarizing

Overview

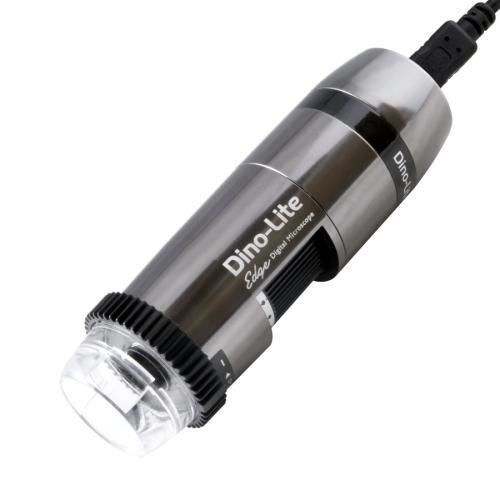

The AM4517MZTL is a long working distance digital microscope from the EDGEPLUS series. It delivers 10–140x magnification with a 1.3 MP CMOS sensor, USB 2.0 connectivity and up to 30 fps. The metal housing, adjustable linear polarizer and Flexible LED Control (FLC) make it well suited for inspection of reflective or delicate surfaces in industrial and laboratory environments.

Main features

• 1.3 Megapixel EDGEPLUS sensor (1280 × 960)
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC) with 8 white LEDs
• 10–140x magnification with long working distance
• Adjustable linear polarizer for reflection control
• USB 2.0 interface, up to 30 fps
• Metal housing, ESD safe
• Measurement and calibration functions supported

AMR and polarizer
AMR automatically detects and records the current magnification in the Dino-Lite software to simplify calibrated measurements. The built-in linear polarizer reduces reflections on shiny materials such as metal, plastic, glass, jewelry and PCBs.

Optical data table (unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 237.6 | 39.1 | 29 | 24.61
20 | 115.0 | 19.5 | 14.7 | 6.68
30 | 75.4 | 13.0 | 9.8 | 3.21
40 | 56.7 | 9.8 | 7.3 | 1.94
50 | 46.4 | 7.8 | 5.9 | 1.33
60 | 40.1 | 6.5 | 4.9 | 0.98
70 | 36.3 | 5.6 | 4.2 | 0.76
80 | 34.0 | 4.9 | 3.7 | 0.62
90 | 32.6 | 4.3 | 3.3 | 0.51
100 | 31.9 | 3.9 | 2.9 | 0.44
110 | 31.7 | 3.6 | 2.7 | 0.38
120 | 31.9 | 3.3 | 2.4 | 0.33
130 | 32.4 | 3.0 | 2.3 | 0.30
140 | 33.2 | 2.8 | 2.1 | 0.27
(Listed values may differ slightly) | *Without front cap | Unit = mm

Technical specifications

• Model: AM4517MZTL (EDGEPLUS)
• Magnification: 10x – 140x
• Sensor: 1.3 MP CMOS (1280 × 960)
• Max frame rate: 30 fps
• Interface: USB 2.0 (UVC, DirectShow)
• LEDs: 8 white LEDs, on/off and FLC
• IR filter: IR cut-filter >650 nm
• Polarizer: linear, adjustable
• Lens: glass with anti-reflection coating
• Working distance: long (see optical table)
• Housing: metal, ESD safe; magnification lock
• Dimensions/weight: 10.5 cm (L) × 3.3 cm (D), 130 g
• Cable: 1.5 m USB
• OS compatibility: Windows 7/8/10/11, MacOS 11.1+

Package & compliance

• Includes: microscope, carry pouch, software CD, user manual, quick guide, calibration target and caps (N3C-O, N3C-C, N3C-D, N3C-E, N3C-L, N3C-S)
• Optional: WF-10 WiFi streamer (wireless-ready)
• Regulatory: CE, FCC, RoHS
• Warranty: 2 years (Europe)
• Indicative price range: €900.00 – €1100.00
