Digital video microscope AM7915MZT

inspectionfor materials researchpolarization

Overview

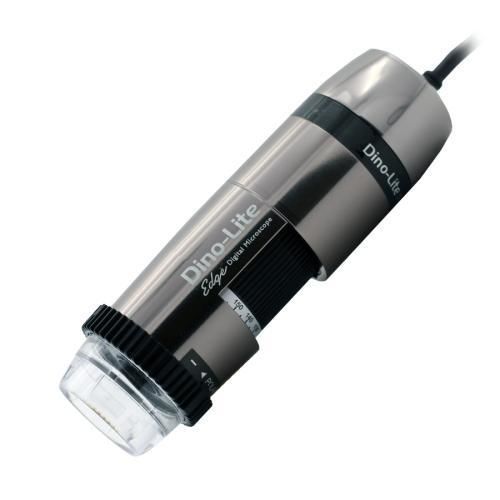

The AM7915MZT is a handheld digital microscope featuring a 5.0 megapixel CMOS sensor, 10–220x magnification range, integrated linear polarizer and metal housing. It delivers 5 MP imaging with measurement and calibration capability for inspection, documentation and metrology in industrial environments.

Key capabilities

• Extended Dynamic Range (EDR) for revealing detail in dark or bright areas by stacking exposures
• Extended Depth of Field (EDOF) for improved focus across rough or uneven surfaces
• Automatic Magnification Reading (AMR) for fast, traceable measurements
• Adjustable polarizer for imaging shiny or reflective materials (metal, plastic, glass, jewelry, electronics)
• Flexible LED Control (FLC) and multiple lighting caps for application-specific illumination
• Measurement, calibration and ESD-safe design; wireless-ready with optional WF-10 streamer

Note: EDOF and EDR functions are available under Windows OS only.

Main features

• 5 Megapixel Edge sensor (2592 x 1944)
• 10–220x magnification range
• Adjustable polarizer (linear)
• Flexible LED Control (FLC) with 8 white LEDs
• Automatic Magnification Reading (AMR); measurement and calibration capable
• Metal housing, magnification lock, microtouch sensor, ESD safe

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE * | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 136.0 | 37.8 | 28.3 |
20 | 60.2 | 19.5 | 14.6 | 2.5
30 | 33.5 | 13.0 | 9.7 | 1.8
40 | 20.9 | 9.8 | 7.3 | 1.5
50 | 13.9 | 7.8 | 5.8 |
60 | 9.7 | 6.5 | 4.8 |
70 | 7.1 | 5.6 | 4.2 | 1.0
80 | 5.5 | 4.9 | 3.6 |
90 | 4.5 | 4.3 | 3.2 |
100 | 4.1 | 3.9 | 2.9 |
110 | 4.0 | 3.6 | 2.7 |
120 | 4.1 | 3.3 | 2.4 |
130 | 4.5 | 3.0 | 2.2 |
140 | 5.0 | 2.8 | 2.1 |
150 | 5.6 | 2.6 | 1.9 |
160 | 6.3 | 2.4 | 1.8 |
170 | 7.1 | 2.3 | 1.7 |
180 | 8.0 | 2.2 | 1.6 |
190 | 8.9 | 2.1 | 1.5 |
200 | 9.9 | 2.0 | 1.5 |
210 | 10.9 | 1.9 | 1.4 |
220 | 11.9 | 1.8 | 1.3 | 0.1

Technical specifications

• Lighting: 8 white LEDs, LED on/off switchable, IR cut-filter >650 nm, diffuser included (N3C-D)
• Optics: Glass lens with anti-reflection coating; macro zoom: no; working distance: standard
• Sensor: CMOS, 5.0 Megapixel (2592x1944), max 30 fps
• Interface & compatibility: USB 2.0; Windows 7/8/10/11, macOS 10.9+; DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Formats & standards: multiple image/video formats supported; DirectShow, UVC
• Housing & dimensions: metal housing, magnification lock; 10.5 cm (L) x 3.2 cm (D); weight 138 g; cable 1.8 m
• Features: AMR, EDR, EDOF, FLC, measurement & calibration capable, microtouch sensor, ESD safe

Package & compliance

• Package contents: microscope, carry pouch, software CD, calibration target, user manual, N3C caps (C, D, D2, E, L, O, S)
• Warranty: 2 years European warranty
• Regulatory: CE, FCC, ROHS
• Price range (indicative): €1100,00 - €1300,00

Recommended applications

• Electronics inspection and BGA/component analysis
• Quality control, manufacturing inspection and metrology
• Materials analysis, surface inspection and failure analysis
• Jewelry, watchmaking and small-parts inspection
