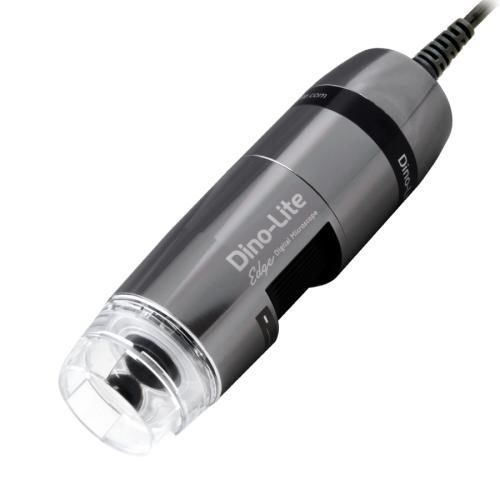

Digital video microscope AM7515MT1A

inspectionhand-heldportable

Product overview
The Dino-Lite AM7515MT1A is a 5.0 MP digital microscope from the Dino-Lite Edge series featuring 70x–140x magnification and built-in coaxial illumination. Flexible LED Control (FLC) enables switching between or mixing brightfield and coaxial lighting to reveal surface and fine detail. Automatic Magnification Reading (AMR) displays the current magnification in the bundled DinoCapture software. The unit is supplied with DinoCapture 2.0 for Windows and is wireless-ready with the optional WF-10 streamer.

Key features

• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC) — brightfield and coaxial mixing
• Calibration and precision measurement functions
• Image capture, annotation and video recording
• 5.0 MP CMOS sensor (2592 x 1944)
• Magnification lock, metal housing and microtouch sensor
• ESD-safe design; 8 switchable white LEDs

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
70 | 38.6 | 5.6 | 4.2 | 0.77
80 | 36.2 | 4.9 | 3.7 | 0.62
90 | 34.8 | 4.3 | 3.3 | 0.52
100 | 34.2 | 3.9 | 2.9 | 0.44
110 | 34.0 | 3.6 | 2.7 | 0.38
120 | 34.2 | 3.3 | 2.4 | 0.33
130 | 34.7 | 3.0 | 2.3 | 0.30
140 | 35.4 | 2.0 | 2.1 | 0.27

Note
Listed values may differ slightly | *Without front cap | Unit = mm

Technical specifications

• Brand: Dino-Lite
• Model: AM7515MT1A
• Sensor type: CMOS, 5.0 MP (2592 x 1944)
• Maximum frame rate: 30 fps (video recording up to 20 fps)
• Interface: USB 2.0; wireless-ready with WF-10 (optional)
• Magnification: 70x–140x; magnification lock
• Lens: glass with anti-reflection coating; diffuser N3C-D available
• Illumination: 8 white LEDs, switchable; IR cut-filter >650 nm; coaxial illumination
• Measurement & calibration: yes; Microtouch sensor: yes; ESD safe: yes
• Housing: metal; dimensions 10.7 cm (L) x 3.2 cm (D); weight 139 g; cable length 1.8 m
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Compatibility: Windows 7/8/10/11, MacOS 10.11.16 and up
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF; (Mac) MOV (max 1.3MP)
• Standards: DirectShow, UVC
• Package contents: microscope, carry pouch, software CD, user manual, quick guide, calibration target, front cover box
• Warranty: 2 years European warranty; Approvals: CE, FCC, ROHS
• Price range (indicative): €1000.00 - €1200.00
