Optical video microscope AM4013MZTL

digitalinspectionpolarized

Overview

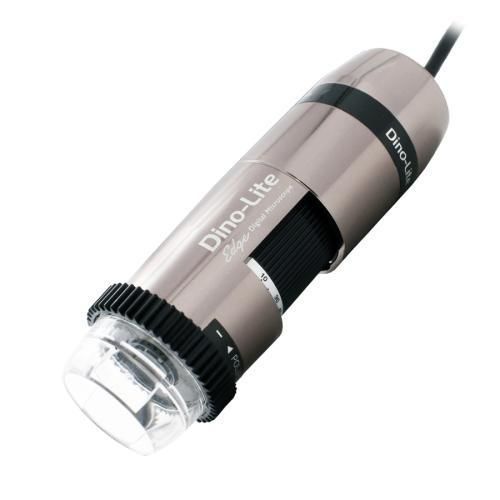

The AM4013MZTL is a USB inspection microscope with a linear polarizer designed for use on highly reflective materials such as plastics and metals. It features an aluminum-alloy housing and a long working distance, making it suited to industrial inspection, measurement and documentation tasks.

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD (Unit = mm)
20 | 151.0 | 19.6 | 15.6 | 6
30 | 101.0 | 13.0 | 10.4 | 3.4
40 | 72.2 | 9.8 | 7.8 | 2.2
50 | 64.1 | 7.8 | 6.3 | 1.65
60 | 56.2 | 6.5 | 5.2 | -
70 | 51.3 | 5.6 | 4.5 | -
80 | 48.3 | 4.9 | 3.9 | -
90 | 46.6 | 4.3 | 3.5 | 0.8

Key features

• Magnification range: 10x ~ 90x
• Long working-distance optical design
• Polarizer: linear polarizer included (reduces glare on reflective materials)
• Lens: glass with anti-reflection coating
• Illumination: 8 white LEDs, LED on/off switchable
• Infrared cut filter: IR cut-filter >650 nm
• Diffuser: No; Emission filter: No
• Sensor: CMOS, 1.3 MP (1280x1024)
• Maximum frame rate: up to 30 fps
• Interface: USB 2.0
• OS compatibility: Windows 7/8/10/11, MacOS 10.9+
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Imaging standards: DirectShow, UVC
• Wireless-ready: requires WF-10 WiFi streamer (optional)
• Housing: metal (aluminum alloy)
• Magnification lock: No
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 140 g
• Cable length: 1.8 m
• Special features: measurement, calibration, Microtouch sensor
• ESD safe: Yes
• Regulatory approvals: CE, FCC, ROHS
• Price range: €600.00 - €800.00

Package contents

• Microscope
• Carry pouch
• Software CD
• Calibration target
• ZT-Z-CC1 cap closure
• User manual

Technical specifications

• Model: AM4013MZTL
• Brand: Dino-Lite
• Magnification: 10x – 90x
• Optical table: see Optical data table above (unit = mm)
• Number of LEDs: 8 (white); LED on/off: Yes
• Infrared cut filter: >650 nm; Polarizer: linear
• Sensor: CMOS, 1.3 MP (1280x1024); Frame rate: up to 30 fps
• Interface: USB 2.0; Supported formats and software as above
• Housing material: aluminum alloy
• Dimensions / Weight / Cable length: 10.5 cm x 3.2 cm / 140 g / 1.8 m
• Measurement & calibration: supported; Microtouch sensor: Yes; ESD safe: Yes
• Warranty: 2 years (European warranty)
• Compliance: CE, FCC, ROHS
