Digital video microscope WF7115MZT

inspectionlaboratorypolarized

Product overview

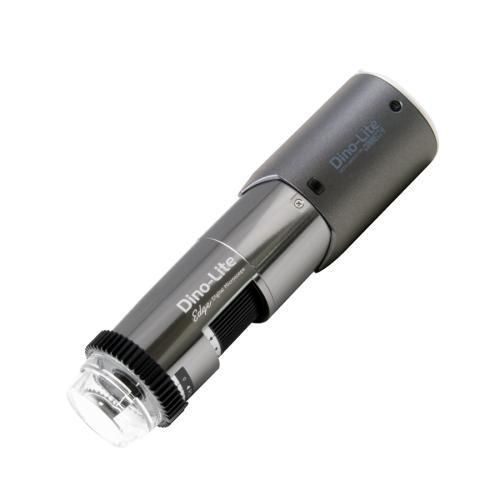

The Dino-Lite WF7115MZT is a compact digital microscope designed for professional inspection tasks. Equipped with a 5.0 MP sensor, integrated linear polarizer and Flexible LED Control (FLC), it delivers accurate color reproduction and controlled illumination for reflective or shiny samples.

Main features

• 5.0 Megapixel CMOS sensor (2592 × 1944)
• Magnification range: 10× – 220×
• Integrated polarizer (built-in linear polarization filter)
• Aluminum / metal housing
• Flexible LED Control (FLC) — adjustable LED illumination
• Extensive measurement functions and calibration
• Exchangeable N3C series front caps (open, closed, diffuser, extension, long, side light)
• Wireless capability (WiFi) and USB 2.0 interface
• Microtouch sensor and ESD safe

Applications
The WF7115MZT suits a wide range of industrial and laboratory uses, including inspection of electronics, PCB components, materials, plastics, jewelry and other reflective specimens where polarization improves imaging.

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE 1 | WORKING DISTANCE 2* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
Unit = mm
10 | - | 142.6 | 39.6 | 29.7 | 2.6
20 | 52.7 | 60.1 | 19.5 | 15.6 | 2.5
30 | 26.0 | 33.5 | 13.0 | 10.4 | 1.8
40 | 13.4 | 20.9 | 9.8 | 7.8 | 1.5
50 | 6.4 | 13.9 | 7.8 | 6.3 | -
60 | 2.2 | 9.7 | 6.5 | 5.2 | -
70 | - | 7.1 | 5.6 | 4.5 | 1.0
80 | - | 5.5 | 4.9 | 3.9 | -
90 | - | 4.5 | 4.3 | 3.5 | -
100 | - | 4.1 | 3.9 | 3.1 | -
110 | - | 4.0 | 3.6 | 2.8 | -
120 | - | 4.1 | 3.3 | 2.6 | -
130 | - | 4.5 | 3.0 | 2.4 | -
140 | - | 5.0 | 2.8 | 2.2 | -
150 | - | 5.6 | 2.6 | 2.1 | -
160 | - | 6.3 | 2.4 | 2.0 | -
170 | - | 7.1 | 2.3 | 1.8 | -
180 | - | 8.0 | 2.2 | 1.7 | -
190 | - | 8.9 | 2.1 | 1.6 | -
200 | - | 9.9 | 2.0 | 1.6 | -
210 | - | 10.9 | 1.9 | 1.5 | -
220 | - | 11.9 | 1.8 | 1.4 | 0.1
Listed values may differ slightly. * Without front cap

Detailed specifications
Lighting

• Light / LED type: White
• Number of LEDs: 8
• LED on/off switchable: Yes
• Infrared filter: IR cut-filter >650 nm
• Diffuser available: Yes (N3C-D included)
• Emission filter: No
• Polarizer: Yes, linear (built-in)

Optics

• Magnification: 10× ~ 220×
• Macro zoom: No
• Working distance: Standard
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 5.0 Megapixel (2592 × 1944)
• Maximum frame rate: 30 fps

Compatibility & software

• Interface: USB 2.0
• Operating systems: Windows 7, 8, 10 & 11; MacOS 10.11.6 and up (cable only)
• Software: DinoCapture 2.0 (Windows) cable + wireless; DinoXcope (Mac) cable only; DinoConnect (wireless only)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV (max 1.3MP)
• Imaging standards: DirectShow, UVC
• WiFi: Yes

Housing & physical

• Housing material: Metal / aluminum
• Dimensions: 10.5 cm (L) × 3.2 cm (D)
• Weight: 135 g
• Cable length: 1.8 m

Features

• Special feature: Flexible LED Control (FLC)
• Measurement: Yes
• Calibration: Yes
• Microtouch sensor: Yes
• ESD safe: Yes

Package contents

• Microscope
• Carry pouch
• Software CD
• Calibration target
• User manual
• N3C-O Open cap
• N3C-C Closed cap
• N3C-D Diffuser cap
• N3C-extension cap
• N3C-L Long cap
• N3C-S Side light cap

Warranty & regulatory

• Warranty: 2 years European warranty
• Regulatory approval: CE, FCC, ROHS

technical specifications

• Model: WF7115MZT
• Brand: Dino-Lite
• Sensor: 5.0 MP CMOS (2592 × 1944)
• Magnification range: 10× – 220×
• Lighting: 8 white LEDs, FLC, diffuser included
• Polarizer: Integrated linear polarizer
• Interface: USB 2.0; WiFi supported
• Housing: Metal / aluminum
• Dimensions & weight: 10.5 cm × 3.2 cm; 135 g
• Included caps: multiple exchangeable front caps (N3C series)
• Software compatibility: Windows and MacOS (varies per connection type)
