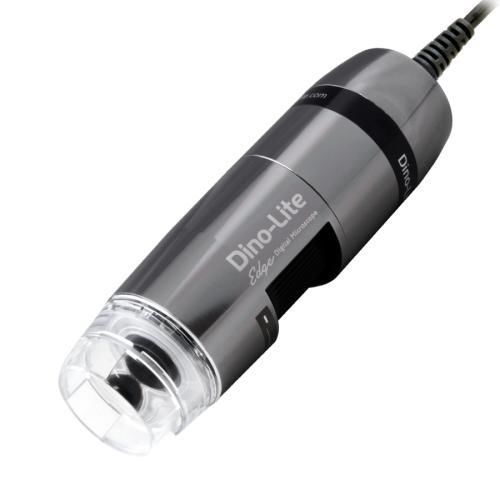

Digital video microscope AM7515MT2A

inspectionfor materials researchhand-held

Description
The AM7515MT2A is a 5MP Dino-Lite Edge Series digital microscope offering 130x–220x magnification with built-in coaxial illumination. Using Flexible LED Control (FLC) this model can switch between or mix brightfield and coaxial lighting to reveal details difficult to see under normal light. It includes Automatic Magnification Reading (AMR) which detects and displays magnification in the included DinoCapture software. Bundled with DinoCapture 2.0 (Windows), the AM7515MT2A is suited for material analysis, electronics inspection and other applications requiring coaxial illumination, mobility and measurement capability.

Key features

• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC)
• Calibration and measurement
• Image capture, annotation and video recording
• Microtouch sensor
• Coaxial illumination

Optical data
MAGNIFICATION RATE | WORKING DISTANCE* (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
130x | 4.5 | 3.0 | 2.2 |
140x | 5.0 | 2.8 | 2.1 |
150x | 5.6 | 2.6 | 1.9 |
160x | 6.3 | 2.4 | 1.8 |
170x | 7.1 | 2.3 | 1.7 |
180x | 8.0 | 2.2 | 1.6 |
190x | 8.9 | 2.1 | 1.5 |
200x | 9.9 | 2.0 | 1.5 |
210x | 10.9 | 1.9 | 1.4 |
220x | 11.9 | 1.8 | 1.3 | 0.1

Technical specifications

• Brand: Dino-Lite
• Model: AM7515MT2A
• Lighting / LED type: White
• Number of LEDs: 8 (LED on/off switchable)
• IR filter: IR cut-filter >650 nm
• Diffuser available: Yes (N3C-D)
• Polarizer: No
• Magnification: 130x ~ 220x
• Macro zoom: No
• Working distance: Standard (see optical data per magnification)
• Lens type: Glass with anti-reflection coating
• Sensor: CMOS, 5.0 Megapixel (2592x1944)
• Maximum frame rate: 30 fps (video recording max 20 fps)
• Interface: USB 2.0
• Operating systems: Windows 7, 8, 10 & 11; MacOS 10.12 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Imaging standards: DirectShow, UVC
• WiFi: Wireless-ready (requires WF-10 WiFi streamer, optional)
• Housing material: Metal housing
• Magnification lock: Yes
• Dimensions: 10.7 cm (L) x 3.2 cm (D)
• Weight: 139 g
• Cable length: 1.8 m
• Special features: AMR, FLC, Coaxial illumination, Microtouch sensor, ESD safe
• Measurement: Yes (calibration included)
• Package contents: Microscope, Carry pouch, Software CD, User manual, Quick guide, Calibration target, Front cover box
• Warranty: 2 years European warranty
• Approvals: CE, FCC, ROHS
• Indicative price range: €1000.00 - €1200.00
