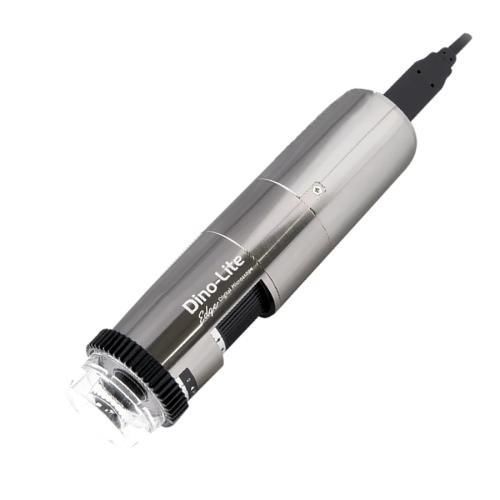

Digital video microscope AM8917MZT Edge Plus

inspectionpolarizedhand-held

Product overview
The 8-megapixel Dino-Lite AM8917MZT Edge Plus is a handheld digital microscope designed for high-resolution inspection and measurement. It captures 3840 x 2160 images with accurate color reproduction and integrates a polarizer plus imaging functions including DPQ, EDOF, EDR, AMR and eFLC to support varied inspection workflows.

Main features

• 8.0 Megapixel sensor (3840 x 2160)
• High optical resolution
• Automatic Magnification Reading (AMR)
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• Enhanced Flexible LED Control (eFLC)
• Adjustable polarizer
• Metal housing
• Magnification range: 10x–220x (edge shading may occur below 25x in 16:9 preview windows)
• USB 2.0 interface

Optical data table
M | WD | FOV (x) | FOV (y) | DOF
10 | 142.6 | 60.69 | 34.14 | 26.01
20 | 60.1 | 30.35 | 17.07 | 7.01
30 | 33.6 | 20.23 | 11.38 | 3.34
40 | 21.0 | 15.17 | 8.53 | 2.01
50 | 14.0 | 12.14 | 6.83 | 1.37
60 | 9.8 | 10.11 | 5.69 | 1.01
70 | 7.3 | 8.67 | 4.88 | 0.78
80 | 5.7 | 7.59 | 4.27 | 0.63
90 | 4.8 | 6.74 | 3.79 | 0.52
100 | 4.3 | 6.07 | 3.41 | 0.44
110 | 4.2 | 5.52 | 3.10 | 0.38
120 | 4.3 | 5.06 | 2.85 | 0.34
130 | 4.7 | 4.67 | 2.63 | 0.31
140 | 5.2 | 4.34 | 2.44 | 0.28
150 | 5.8 | 4.05 | 2.28 | 0.26
160 | 6.5 | 3.79 | 2.13 | 0.24
170 | 7.3 | 3.57 | 2.01 | 0.22
180 | 8.1 | 3.37 | 1.90 | 0.20
190 | 9.1 | 3.20 | 1.80 | 0.19
200 | 10.0 | 3.03 | 1.71 | 0.18
210 | 11.0 | 2.89 | 1.63 | 0.17
220 | 12.1 | 2.76 | 1.55 | 0.16

Specifications (summary)

• Lighting / LED type: White (8 LEDs)
• Magnification: 10x ~ 220x
• Working distance: 142.6 ~ 12.1 mm
• Sensor type: CMOS
• Resolution: 8.0 Megapixel (3840 x 2160)
• Maximum frame rate: 10 fps at 8.0 MP (MJPEG); MJPEG 25 fps at 2.0 MP
• Interface: USB 2.0
• Operating system: Windows 10/11 (advanced features available on Windows PC only)
• Supported image formats (Windows): BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
• Supported video formats (Windows): WMV, FLV, SWF
• Housing material: Metal
• Dimensions: 130 mm (H) x 33 mm (D)
• Weight: 120 g
• Measurement & calibration: Yes
• Microtouch sensor: Yes
• Package contents: N3C-C, N3C-D, N3C-D2, N3C-E, N3C-L, N3C-O, N3C-S
• Warranty: 2 years European warranty
• Regulatory approval: CE, FCC, ROHS
• Price range (indicative): €1500.00 - €1700.00

Characteristics / Technical specifications

• Product code / Model: AM8917MZT Edge Plus
• Brand: Dino-Lite
• Sensor resolution: 8.0 MP (3840 x 2160)
• Magnification: 10x–220x
• Working distance: 142.6–12.1 mm
• Connectivity: USB 2.0
• OS compatibility: Windows 10 / 11 (advanced features on Windows only)
• LEDs: 8 white LEDs with eFLC support
• Housing: Metal
• Dimensions & weight: 130 mm x 33 mm; 120 g
• Special imaging features: AMR, EDOF, EDR, DPQ, Auto/Manual Refocus (Windows)
