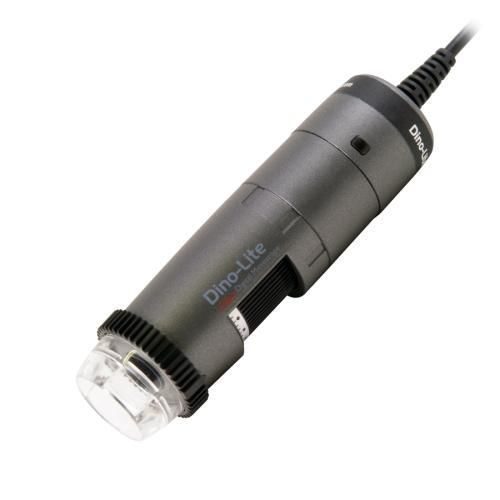

Digital video microscope AF4115ZT

inspectionlaboratorypolarized

Product overview
The Dino-Lite AF4115ZT is a USB digital inspection microscope from the Universal series designed for high‑magnification visual inspection and measurement in laboratory and production environments. It is wireless‑ready with the optional WF‑20 adapter and combines adjustable illumination, an integrated linear polarizer and built‑in measurement tools to speed up inspection workflows.

Main features

• Wireless‑ready (requires optional WF‑20 adapter)
• Magnification: 20x–220x
• 1.3 Megapixel CMOS sensor (1280 x 1024), up to 30 fps
• Adjustable linear polarizer to reduce reflections
• Flexible LED Control (FLC) with 8 white LEDs and LED on/off
• Extensive measurement and calibration functionality; Microtouch sensor

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
20 | 60.2 | 19.5 | 15.6 | 2.5
30 | 33.5 | 13.0 | 10.4 | 1.8
40 | 20.9 | 9.8 | 7.8 | 1.5
50 | 13.9 | 7.8 | 6.3 | -
60 | 9.7 | 6.5 | 5.2 | -
70 | 7.1 | 5.6 | 4.5 | 1.0
80 | 5.5 | 4.9 | 3.9 | -
90 | 4.5 | 4.3 | 3.5 | -
100 | 4.1 | 3.9 | 3.1 | -
110 | 4.0 | 3.6 | 2.8 | -
120 | 4.1 | 3.3 | 2.6 | -
130 | 4.5 | 3.0 | 2.4 | -
140 | 5.0 | 2.8 | 2.2 | -
150 | 5.6 | 2.6 | 2.1 | -
160 | 6.3 | 2.4 | 2.0 | -
170 | 7.1 | 2.3 | 1.8 | -
180 | 8.0 | 2.2 | 1.7 | -
190 | 8.9 | 2.1 | 1.6 | -
200 | 9.9 | 2.0 | 1.6 | -
210 | 10.9 | 1.9 | 1.5 | -
220 | 11.9 | 1.8 | 1.4 | 0.1

Notes
Listed optical values may vary slightly depending on configuration and usage. *Values measured without front cap. Unit = mm.

Technical specifications

• Lighting: 8 white LEDs, LED on/off switchable, IR cut-filter >650 nm, diffuser (N3C-D) included
• Optics: Magnification 20x–220x, glass lens with anti‑reflection coating, standard working distance
• Sensor: CMOS, 1.3 Megapixel (1280x1024), max 30 fps
• Interface: USB 2.0; imaging standards DirectShow and UVC
• OS compatibility: Windows 7, 8, 10 & 11; macOS 10.12 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (macOS)
• Housing: Composite/plastic; dimensions 114 x 33 mm; weight 111 g; cable length 1.8 m
• Features: Flexible LED Control (FLC), measurement & calibration, Microtouch sensor
• Regulatory: CE, FCC, RoHS
• Warranty: 2 years European warranty

Package contents

• Microscope (AF4115ZT)
• Carry pouch, software CD, calibration target, user manual
• Caps: N3C‑O (open), N3C‑C (closed), N3C‑D (diffuser), N3C‑E (extension), N3C‑L (long), N3C‑S (side light)
