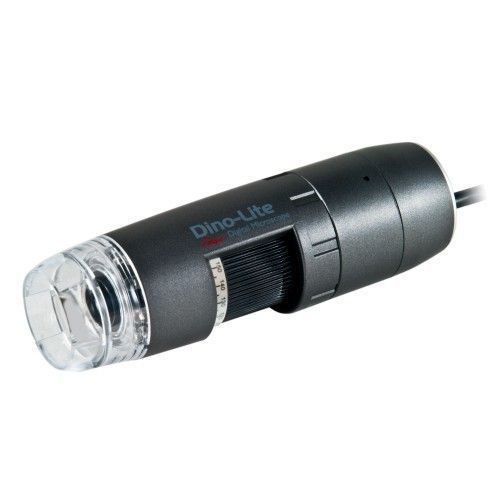

Digital video microscope AM4115TL - EDGE

inspectionLEDwhite light

Description
The AM4115TL - EDGE is a USB digital microscope offering 10–140x magnification, a long working distance (227 mm at 10x; typically up to ~23 cm) and a wide field of view, designed for inspection, repair, rework and assembly tasks where a greater distance between the optic and the object is required.

Optical data (unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 227 | 39.0 | 31.2 | 12
20 | 105 | 19.5 | 15.6 | 4.5
30 | 65 | 13.0 | 10.4 | 3.1
40 | 47 | 9.8 | 7.8 | 1.8
50 | 36 | 7.8 | 6.2 | 1.2
60 | 30 | 6.5 | 5.2 | 0.9
70 | 26.2 | 5.6 | 4.5 | 0.6
80 | 23.8 | 4.9 | 3.9 | 0.5
90 | 22.4 | 4.3 | 3.5 | 0.37
100 | 21.7 | 3.9 | 3.1 | 0.28
110 | 21.6 | 3.5 | 2.8 | 0.22
120 | 21.8 | 3.3 | 2.6 | 0.17
130 | 22.3 | 3.0 | 2.4 | 0.12
140 | 23 | 2.8 | 2.2 | 0.09

Key specifications

• Illumination: 8 white LEDs, switchable; diffuser (N3C-D) included
• Infrared filter: IR cut-filter >650 nm
• Lens: glass with anti-reflection coating; magnification lock
• Sensor: CMOS, 1.3 MP (1280x1024), 30 fps
• Interface: USB 2.0; Windows and macOS compatible

Compatibility & software

• Software: DinoCapture 2.0 (Windows), DinoXcope (macOS)
• Supported image/video formats: platform-dependent (Windows: BMP, GIF, PNG, JPG, TIF, etc.; Mac: JPEG, PNG; video: MOV on Mac)
• Imaging standards: DirectShow, UVC
• Wireless-ready: optional WF-10 WiFi streamer

Package & certifications

• Package contents: microscope, carry pouch, software CD, calibration target, user manual, caps (N3C-O/C/D/E/L/S)
• Warranty: 2 years (Europe)
• Regulatory approvals: CE, FCC, ROHS
• Indicative price range: €500–€700

Technical details

• Brand: Dino-Lite
• Model: AM4115TL - EDGE
• Magnification: 10x–140x
• Working distance: up to ~23 cm (227 mm at 10x)
• Dimensions & weight: 10.5 cm (L) x 3.2 cm (Ø); 105 g; cable length: 1.8 m
• Housing: composite/plastic; measurement & calibration supported; microtouch sensor present; ESD safe: No
