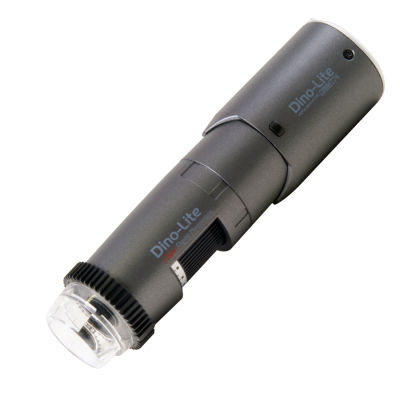

Digital video microscope WF4915ZT

inspectionlaboratorypolarizing

Overview
The Dino-Lite WF4915ZT is a wireless-capable digital microscope from the Universal series. It switches quickly between wired USB operation and wireless operation using the attachable WF-20 adapter, making it suitable for inspection and measurement tasks in production, quality control and laboratory environments.

Key features

• Complete wireless solution (WF-20 included)
• Magnification range: 20×–220×
• 1.3 MP CMOS Edge sensor (1280×1024)
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• Automatic Magnification Reading (AMR)
• Adjustable linear polarizer
• Flexible LED Control (FLC) with 8 white LEDs, LED on/off
• Integrated measurement and calibration functions
• Diffuser cap N3C-D included

Working distance / field of view / depth of field
MAGNIFICATION RATE | WORKING DISTANCE (*) | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20 | 60.2 mm | 19.5 mm | 14.6 mm | 2.5 mm
30 | 33.5 mm | 13.0 mm | 9.7 mm | 1.8 mm
40 | 20.9 mm | 9.8 mm | 7.3 mm | 1.5 mm
50 | 13.9 mm | 7.8 mm | 5.8 mm | -
60 | 9.7 mm | 6.5 mm | 4.8 mm | -
70 | 7.1 mm | 5.6 mm | 4.2 mm | 1.0 mm
80 | 5.5 mm | 4.9 mm | 3.6 mm | -
90 | 4.5 mm | 4.3 mm | 3.2 mm | -
100 | 4.1 mm | 3.9 mm | 2.9 mm | -
110 | 4.0 mm | 3.6 mm | 2.7 mm | -
120 | 4.1 mm | 3.3 mm | 2.4 mm | -
130 | 4.5 mm | 3.0 mm | 2.2 mm | -
140 | 5.0 mm | 2.8 mm | 2.1 mm | -
150 | 5.6 mm | 2.6 mm | 1.9 mm | -
160 | 6.3 mm | 2.4 mm | 1.8 mm | -
170 | 7.1 mm | 2.3 mm | 1.7 mm | -
180 | 8.0 mm | 2.2 mm | 1.6 mm | -
190 | 8.9 mm | 2.1 mm | 1.5 mm | -
200 | 9.9 mm | 2.0 mm | 1.5 mm | -
210 | 10.9 mm | 1.9 mm | 1.4 mm | -
220 | 11.9 mm | 1.8 mm | 1.3 mm | 0.1 mm

Note
Values may vary slightly depending on configuration and caps. *Without front cap. EDOF and EDR functions operate only under Windows OS.

Specifications
Lighting
Light / LED type: White
Number of LEDs: 8
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: Yes (N3C-D included)
Emission filter: No
Polarizer: Yes, linear

Optics
Magnification: 20× ~ 220×
Macro zoom: No
Working distance: Standard (see table)
Lens type: Glass with anti-reflection coating

Sensor
Sensor type: CMOS
Resolution: 1.3 Megapixel (1280×1024)
Maximum frame rate: 30 fps

Compatibility
Interface: USB 2.0
Operating system: Windows 7, 8, 10 & 11; MacOS 10.11.6 and up (cable only)
Software: DinoCapture 2.0 (Windows) cable + wireless, DinoXcope (Mac OS) cable only, DinoConnect wireless only
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC
Wifi: Yes

Housing
Housing material: Composite / plastic housing
Dimensions: 11.4 cm (L) x 3.3 cm (D)
Weight: 111 g
Cable length: 1.8 m

Features
Special features: Automatic Magnification Reading (AMR), Extended Dynamic Range (EDR), Extended Depth of Field (EDOF), Flexible LED Control (FLC)
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: No

Information
Package contents: Microscope, WF-20 adapter, carry pouch, software CD, calibration target, user manual, N3C-O open cap, N3C-C closed cap, N3C-D diffuser cap, N3C-E extension cap, N3C-L long cap, N3C-S side light cap
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
Price range (indicative): €1100.00 - €1300.00

Technical specifications

• Model: WF4915ZT
• Brand: Dino-Lite
• Magnification: 20× – 220×
• Sensor: CMOS 1.3 MP (1280×1024)
• Max frame rate: 30 fps
• Interface: USB 2.0 + Wireless (attachable WF-20)
• LEDs: 8 white LEDs, on/off
• Polarizer: Linear, adjustable
• Software features: AMR, EDR, EDOF (EDR/EDOF available under Windows)
• Dimensions: 11.4 cm × 3.3 cm
• Weight: 111 g
• Package contents: see information above
• Warranty: 2 years (Europe)
