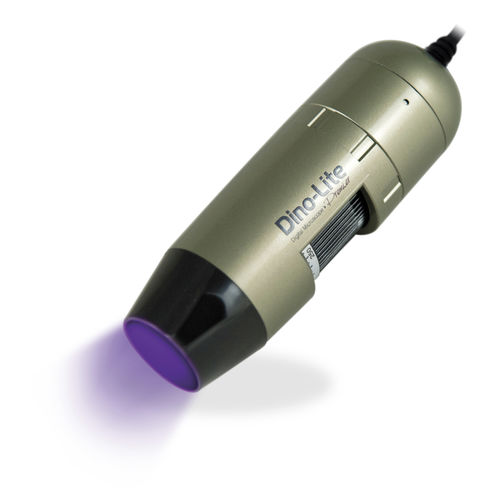

Digital video microscope AM4113T-FVW

inspectionfor forensicseducation

Overview
Handheld USB digital microscope for inspection and imaging. The VW series features switchable white and 395 nm UV LEDs. The AM4113T-FVW includes an emission barrier filter (400 nm) and an IR cut-filter (>650 nm) to reduce returning UV light and produce natural-color images under UV illumination.

Note
Also available in a ~375 nm LED version: model AM4113T-FV2W.

Optical data (unit = mm)
MAGNIFICATION — WORKING DISTANCE — FOV (X) — FOV (Y) — DEPTH OF FIELD
20 — 48.7 — 19.6 — 15.6 — 3.6
30 — 21.7 — 13.0 — 10.4 — 1.9
40 — 9.0 — 9.8 — 7.8 — -
50 — 1.9 — 7.8 — 6.3 — 0.88
60 — -2.3 — 6.5 — 5.2 — -
220 — -0.1 — 1.8 — 1.4 — 0.20
230 — 1.0 — 1.7 — 1.4 — -
240 — 2.1 — 1.6 — 1.3 — -

Key features

• Lighting: 395 nm UV + white, 4+4 LEDs, switchable; Emission barrier filter 400 nm (included); IR cut-filter >650 nm; Diffuser: No; Polarizer: No.
• Optics: Magnification 10×–70× and 200×; Glass lens with anti-reflection coating; Magnification lock present; Working distance: standard.
• Sensor: 1.3 MP CMOS (1280×1024), up to 30 fps.
• Compatibility: USB 2.0 (DirectShow, UVC); Windows 7/8/10/11, macOS 10.9+; Software: DinoCapture 2.0 (Windows), DinoXcope (Mac).
• Housing & Mechanical: Composite/plastic housing; Dimensions: 105 × 32 mm (L × D); Weight: 105 g; Cable length: 1.8 m.
• Functions: Measurement and calibration supported; Microtouch sensor included; ESD safe: No.
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, caps: N3C-C, N3C-EB, N3C-L, N3C-OB, N3C-S.
• Warranty & Compliance: 2 years European warranty; CE, FCC, RoHS.
• Price range (indicative): EUR 400.00 – EUR 600.00.

Applications

• Industrial inspection and quality control
• Electronics and PCB analysis
• Forensics and material analysis
• Education and research

Ordering information
Model: AM4113T-FVW
Manufacturer: Dino-Lite
Alternative model: AM4113T-FV2W (~375 nm LEDs).
