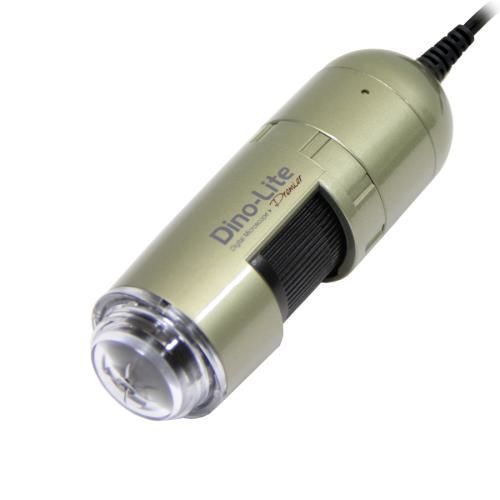

Digital video microscope AM4113T5

inspectionLEDwhite light

Product overview
The AM4113T5 is a high-magnification digital microscope for inspection and measurement tasks. Magnification ranges from 500x up to 560x, with calibration and measurement capabilities and a Microtouch capture sensor. Interface: USB 2.0; sensor: 1.3 MP CMOS; illumination: 8 white LEDs with IR cut-filter >650 nm.

Optical data table (Unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
500x | 1.7 | 0.78 | 0.59 | 0.04
510x | 2.5 | 0.77 | 0.57 | 0.04
520x | 3.3 | 0.75 | 0.56 | 0.04
530x | 4.2 | 0.74 | 0.55 | 0.04
540x | 5.0 | 0.72 | 0.54 | 0.04
550x | 5.8 | 0.71 | 0.53 | 0.04
560x | 6.6 | 0.70 | 0.52 | 0.04

Lighting

• Light/LED type: White
• Number of LEDs: 8
• LED on/off switchable
• Infrared filter: IR cut-filter >650 nm
• Diffuser / emission filter / polarizer: not available

Optics

• Magnification: 500x ~ 560x
• Macro zoom: No
• Working distance: see optical data table
• Lens: Glass with anti-reflection coating

Sensor

• Type: CMOS
• Resolution: 1.3 Megapixel (1280x1024)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0
• Operating systems: Windows 7, 8, 10, 11; MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Imaging standards: DirectShow, UVC

Housing

• Material: Composite / plastic housing
• Dimensions: 103 mm (H) x 32 mm (D)
• Weight: 100 g
• Cable length: 1.8 m

Features

• Measurement and calibration capable
• Microtouch sensor for capture
• ESD safe: No

Information

• Package contents: Microscope, carry pouch, software CD, calibration target, user manual
• Warranty: 2 years European warranty
• Regulatory approval: CE, FCC, ROHS
• Price range (indicative): €350,00 - €500,00
